    • Home
    • Catalogue
    • Building management system KNX
    • Push buttons & Sensors
    • Motion and presence detectors
    • TCC521E
    EAN-Nr.
    3250617579414
    Packaging
    1 piece
    • Motion and presence detectors

    Presence detector 360° monobloc KNX / DALI TCC521E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Presence detector 360° monobloc KNX / DALI

    TCC521E

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Accessories/spare parts for movement sensor 2 products available

    Complete your system

    • Accessories/spare parts for movement sensor
    • EE807

      Remote control for settings for presence detectors 360° monobloc
      0.00 €  / *
    • EE808

      Remote control for customer for presence detectors 360° monobloc
      0.00 €  / *

    Technical characteristics

    Dimensions
    • Installation height
      4 - 4 m
    • Recommended installation height
      2.5 - 3.5 m
    Settings
    • Supported configuration mode
      ETS
    • Minimal duty cycle
      60 s
    Functions
    • Maximal duty cycle
      60 min
    Connectivity
    • With bus system KNX radio
      No
    Voltage
    • Operating voltage over bus
      21 - 32 V
    Scope of delivery
    • Bus connection included
      Yes
    Electric current
    • Bus current consumption data transfer
      12 mA
    Detection
    • Detection angle
      360 - 360
    • Detection angle horizontal
      360 - 360
    Use conditions
    • Operating temperature
      -10 - 45 °C
    Materials
    • Material
      Acrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
    Texts
    • Function
      Linking several detectors in order to expand the detection area
    • Installation mode
      With spring clips for ceiling installation

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Motion detector 90-180° 3-wire/2300W IP55 Signal White
    PDF
    4,62 MB
    Hager REACH declaration TCC521E
    PDF
    RoHS report TCC521E
    PDF

    Downloads

    • Image TCC521E | Hager

      Product Image TCC521E

    • Product datasheet

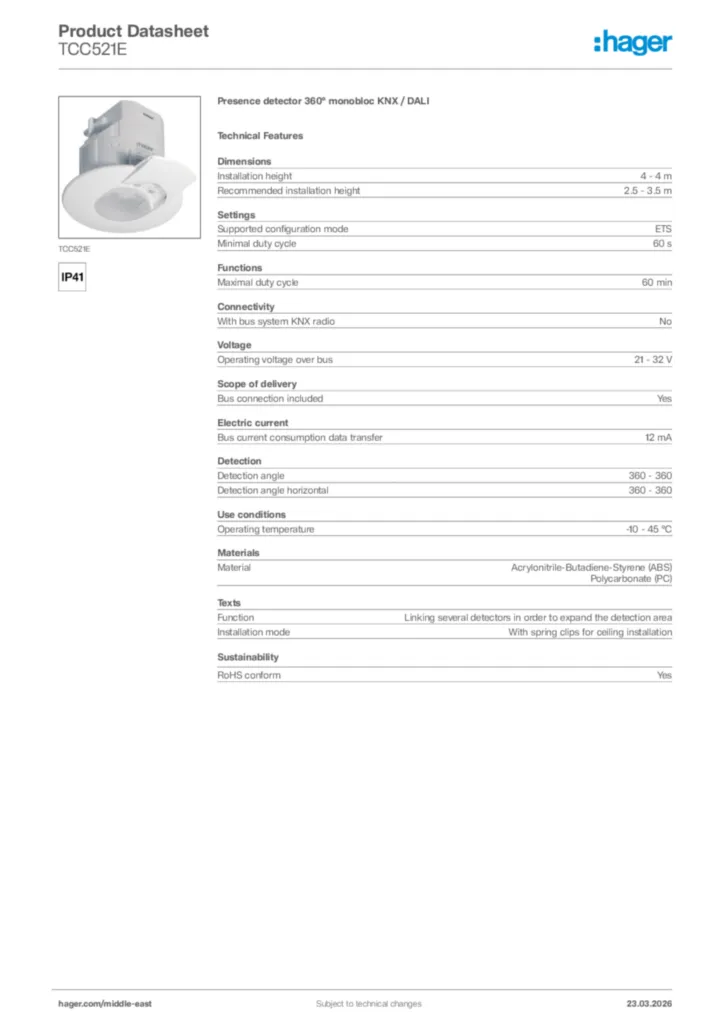

      Image Hager Product data sheet TCC521E | Hager

      Hager Product data sheet TCC521E

      Presence detector 360° monobloc KNX / DALI

      PDF

    • Installation manual

      Image Installation manual en-GB, fr-FR, de-DE, nl-NL, pl-PL 2007-09-14 | Hager

      Installation manual en-GB, fr-FR, de-DE, nl-NL, pl-PL 2007-09-14

      PDF
      1,76 MB
      Image Installation manual en-GB, fr-FR, pl-PL 2009-05-18 | Hager

      Installation manual en-GB, fr-FR, pl-PL 2009-05-18

      PDF
      4,53 MB

    • KNX product database

      Image Logiciel d'application ETS du TCC521E | Hager

      Logiciel d'application ETS du TCC521E

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      108,77 kB
      Image Logiciel d'applicatioon ETS du TCC521E | Hager

      Logiciel d'applicatioon ETS du TCC521E

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      92,95 kB

    • Declaration of conformity

      Image Declaration of conformity International 2023-03-02 | Hager

      Declaration of conformity International 2023-03-02

      PDF
      331,47 kB
