    EAN-Nr.
    3250615725578
    Packaging
    12 Pieces

    Green & red LED Double indicator light 12/48V SVN222

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Green & red LED Double indicator light 12/48V

    SVN222

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Capacity
    • Number of modules
      1
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated insulation voltage Ui
      400 V
    • Rated impulse withstand voltage Uimp
      4,000 V
    • Rated operational voltage Ue
      230 - 230 V
    • Type voltage supply
      AC
    Use conditions
    • Operating temperature
      -20 - 50 °C
    • Storage/transport temperature
      -40 - 80 °C
    Connectivity
    • Type of connection
      Screw terminal
    Connection
    • Cross-section flexible conductor
      0.75 - 6 mm²
    • Cross-section rigid conductor
      0.75 - 10 mm²
    • Type of lamp socket
      Fix
    Power
    • Total power loss under IN
      0.80 W
    • Power per charging point
      0
    Dimensions
    • Height
      83 mm
    • Width
      17.50 mm
    • Depth
      62 mm
    Lighting
    • Type of lamp
      LED
    Materials
    • Colour
      Red
    Safety
    • Ingress Protection (IP) class
      IP20

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration SVN222
    PDF
    Hager RoHS report SVN222
    PDF

    Downloads

    • Image SVN222 | Hager

      Product Image SVN222

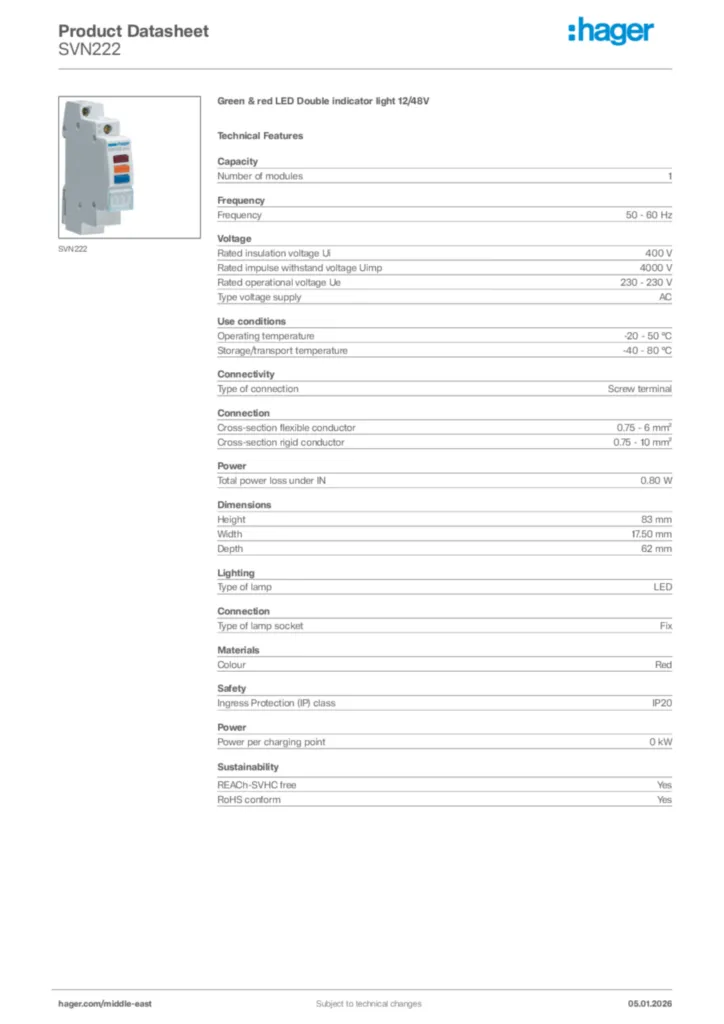

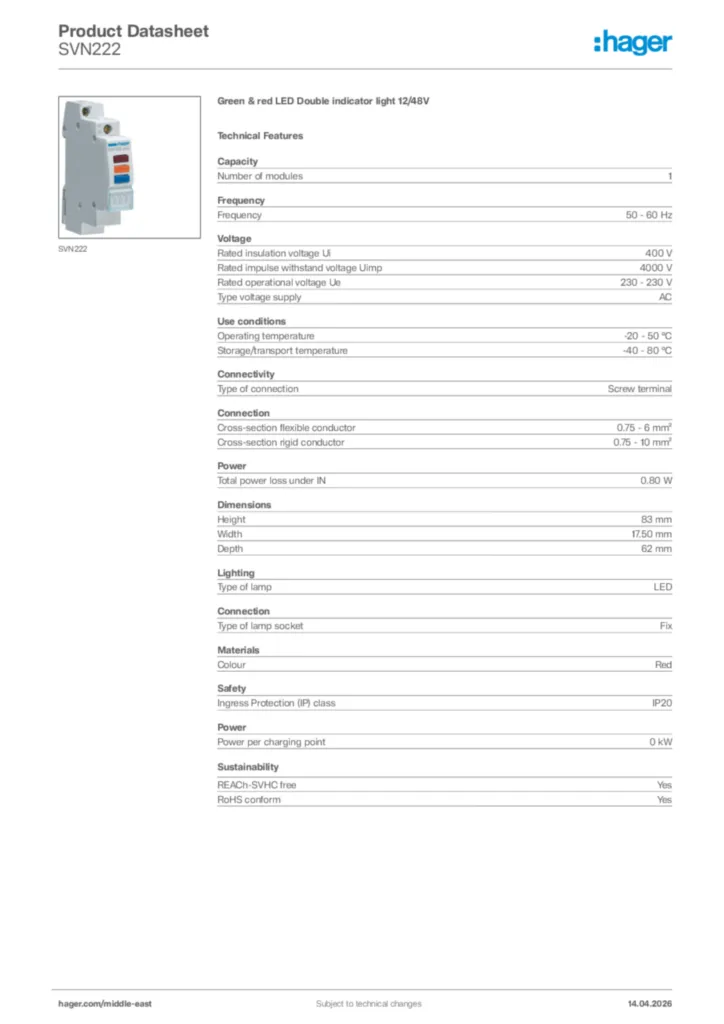

    • Product datasheet

      Image Hager Product data sheet SVN222 | Hager

      Hager Product data sheet SVN222

      Green & red LED Double indicator light 12/48V

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-09-13

      PDF
      574,93 kB
