    EAN-Nr.
    3250615700001
    Packaging
    1 piece

    Safety transformer 18VA 230-12V ST320

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    No longer available

    Safety transformer 18VA 230-12V

    ST320

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Voltage
    • Output voltage
      12 - 12 V
    • Rated operational voltage Ue
      230 - 230 V
    • Rated insulation voltage Ui
      4,000 V
    Power
    • Power consumption VA
      18 VA
    Frequency
    • Frequency
      50 - 60 Hz
    Capacity
    • Number of modules
      2
    Dimensions
    • Height
      85 mm
    • Width
      35 mm
    • Depth
      58 mm
    Safety
    • Ingress Protection (IP) class
      IP20
    • Temperature protection
      Yes
    Equipment
    • Is short-circuit protected
      Yes
    • On/off switch
      No
    Connection
    • Cross-section flexible conductor
      4 mm²
    • Cross-section rigid conductor
      6 mm²

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration ST320
    PDF
    Hager RoHS report ST320
    PDF

    Downloads

    • Image ST320 | Hager

      Product Image ST320

    • Product datasheet

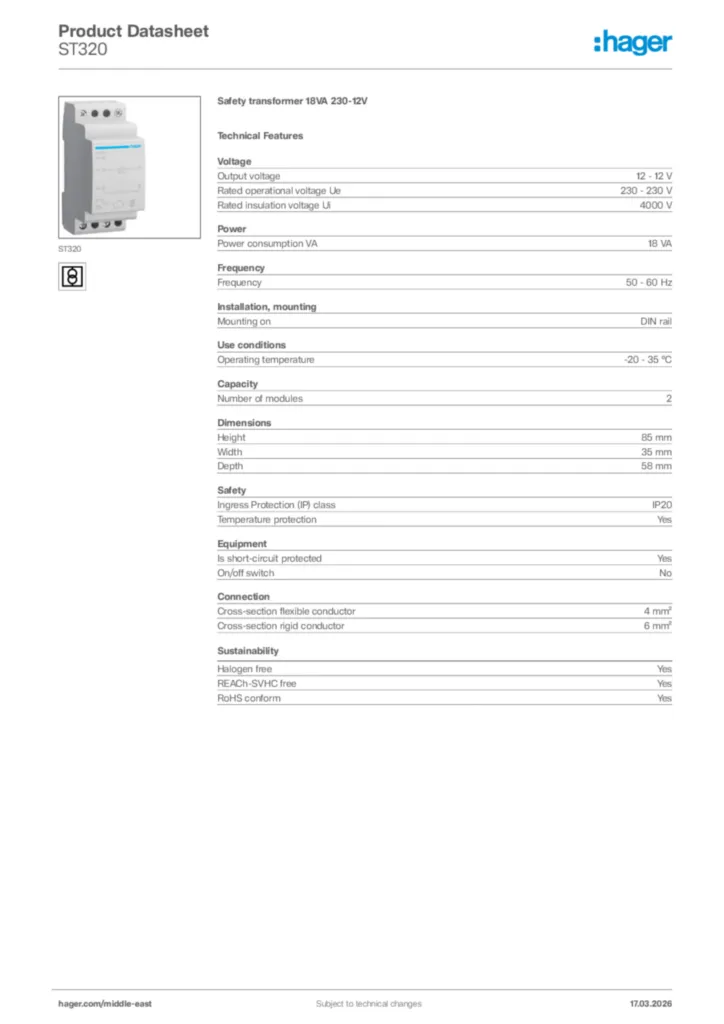

      Image Hager Product data sheet ST320 | Hager

      Hager Product data sheet ST320

      Safety transformer 18VA 230-12V

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2018-03-06 | Hager

      Instruction manual en-GB 2018-03-06

      PDF
      396,80 kB

    • Declaration of conformity

      Image Declaration of conformity for Safety Isolating transformer | Hager

      Declaration of conformity for Safety Isolating transformer

      Declaration of conformity International 2021-09-30

      PDF
      295,69 kB
