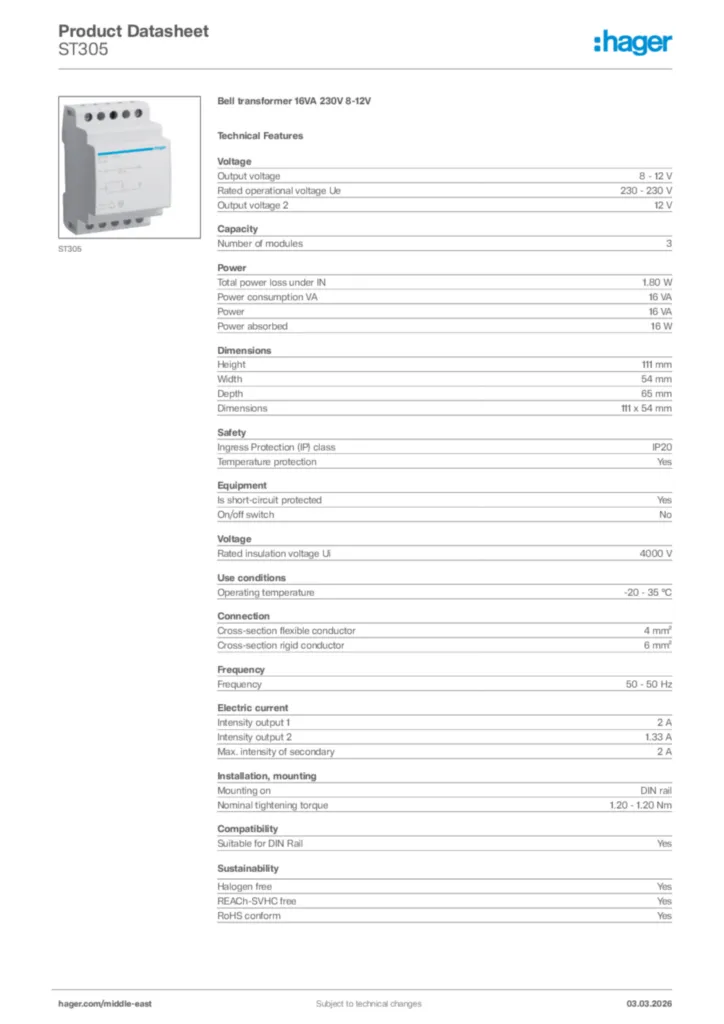

Bell transformer 16VA 230V 8-12V ST305
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Voltage
-
Output voltage8 - 12 V
-
Rated operational voltage Ue230 - 230 V
-
Output voltage 212 V
-
Rated insulation voltage Ui4,000 V
Capacity
-
Number of modules3
Power
-
Total power loss under IN1.80 W
-
Power consumption VA16 VA
-
Power16 VA
-
Power absorbed16 W
Dimensions
-
Height111 mm
-
Width54 mm
-
Depth65 mm
Safety
-
Ingress Protection (IP) classIP20
-
Temperature protectionYes
Equipment
-
Is short-circuit protectedYes
-
On/off switchNo
Use conditions
-
Operating temperature-20 - 35 °C
Connection
-
Cross-section flexible conductor4 mm²
-
Cross-section rigid conductor6 mm²
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Intensity output 12 A
-
Intensity output 21.33 A
-
Max. intensity of secondary2 A
Installation, mounting
-
Mounting onDIN rail
-
Nominal tightening torque1.20 - 1.20 Nm
Internal use only
-
Number of half modules of 17,5 mm6
Compatibility
-
Suitable for DIN RailYes
