SPD 4P pluggable 40kA class 2 with end of life indicator SPN440D

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Number of modules

4

Continuous operating voltage Uc according to IEC 61643-1

275 V
Voltage protection level Up N-PE IEC 61643-11

1,500 V
Voltage protection level Up L-N (PEN)

1.2 kV
Voltage level Up L-N/PEN IEC 61643-11

1.2 kV
Type voltage supply

AC
Overvoltage category according to IEC 60947-1

3
Nominal voltage

240 - 415 V AC ± 10%

Max. overcurrent protection device, parallel connection (fuse)

125 A
Max. discharge current (Imax)

40 kA
Max. discharge current (Imax) L-N (PEN)

40 kA
Max. discharge current (Imax) N-PE

40 kA
Nominal discharge current In

20 kA
Nominal discharge current In 8 - 20 µs L-N (PEN)

15 kA
Nominal discharge current In 8 - 20 µs N-PE

20 kA
Follow current interrupting rating

0.1 kA
Residual current Ipe

< 5 μA

Height

98.7 mm
Width

71 mm
Depth

58.2 mm

Ingress Protection (IP) class

IP20
Protection class

Isolation class II
TOV behaviour at UT (N-PE)

1200 V AC (200 ms / withstand mode)
Mode of protection

L-N, N-PE
TOV behaviour at UT (L-N)

350 V AC (5 s / withstand mode)

Operating temperature

-40 - 80 °C
Air humidity protection

5 - 95%
Storage/transport temperature

-40 - 80 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Max. altitude

2,000 m

Product colour

Light grey
RAL code

7035
Material

Thermoplastic

Network type

TN-S, TT
Network TN

No
Network TN-C

No
Network DC

No
Network IT

No
Network TT

Yes
Network TN-C-S

No
Network TN-S

Yes

With remote signalling contact

No
Rated load current IL

80 A

Cross-section of input and output with screws, for flexible conductors

1.5 - 25 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 25 mm²
Cross-section flexible conductor

1.5 - 25 mm²
Cross-section rigid conductor

1.5 - 35 mm²
Connector/plug type

Screw terminal
Number of connections

1

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

5 - 5 Nm
Suitable for indoor usage

Yes

Type of pole

3P+N
Neutral position

Left

Mounting type

DIN rail
Type of connection

Screw connection

With indicator lamp

Yes

Disconnector indication

Optical

Fuse characteristics

gG

Number of half modules of 17,5 mm

8

Filter Type product

SPD

Downloads

Product Image SPN440D

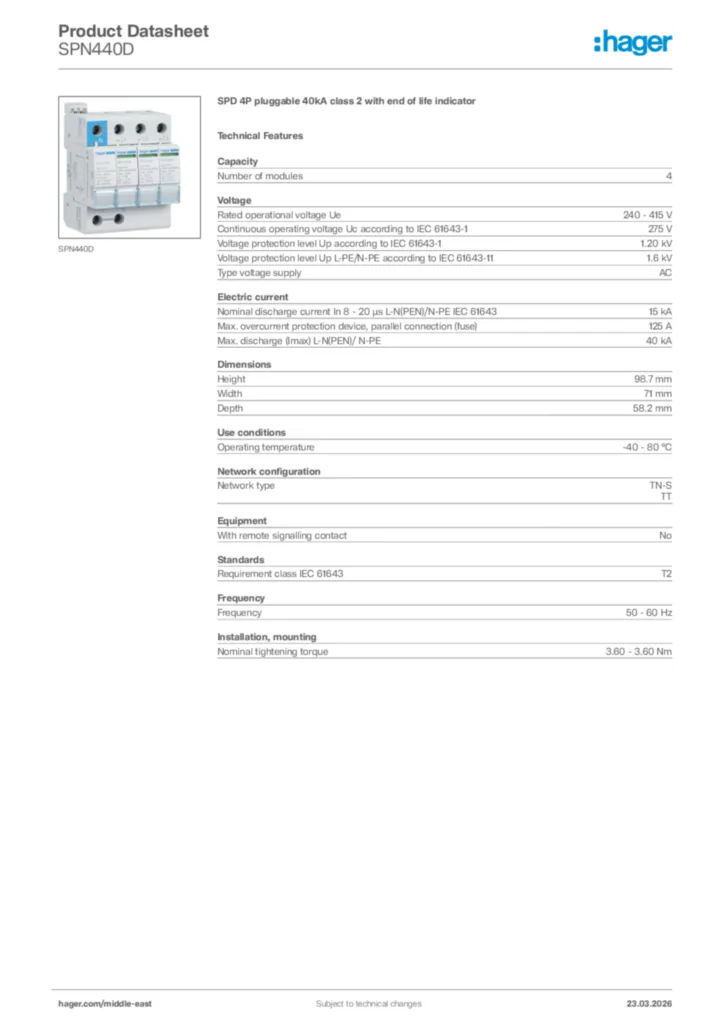

Product datasheet
