    • Home
    • Catalogue
    • SM100
    EAN-Nr.
    3250615631008
    Packaging
    1 piece

    Analogue ammeter 0-100A indirect reading SM100

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Analogue ammeter 0-100A indirect reading

    SM100

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Capacity
    • Number of modules
      4
    Use conditions
    • Operating temperature
      -25 - 50 °C
    • Storage/transport temperature
      -40 - 80 °C
    Connection
    • Cross-section flexible conductor
      1 - 6 mm²
    • Cross-section rigid conductor
      1.5 - 10 mm²
    Dimensions
    • Height
      85 mm
    • Width
      70 mm
    • Depth
      54 mm
    Measurement
    • Current measurement range
      0 - 100 A
    • Type of measuring instrument
      Analog
    Power
    • Power consumption VA
      1.10 VA
    • Total power loss under IN
      1.10 W
    Safety
    • Ingress Protection (IP) class
      IP20
    Installation, mounting
    • Mounting on
      DIN rail
    Functions
    • Accuracy class
      0.015
    Voltage
    • Rated insulation voltage Ui
      2,000 V
    Frequency
    • Frequency
      45 - 65 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SM100
    PDF
    RoHS report SM100
    PDF

    Downloads

    • Image SM100 | Hager

      Product Image SM100

    • Product datasheet

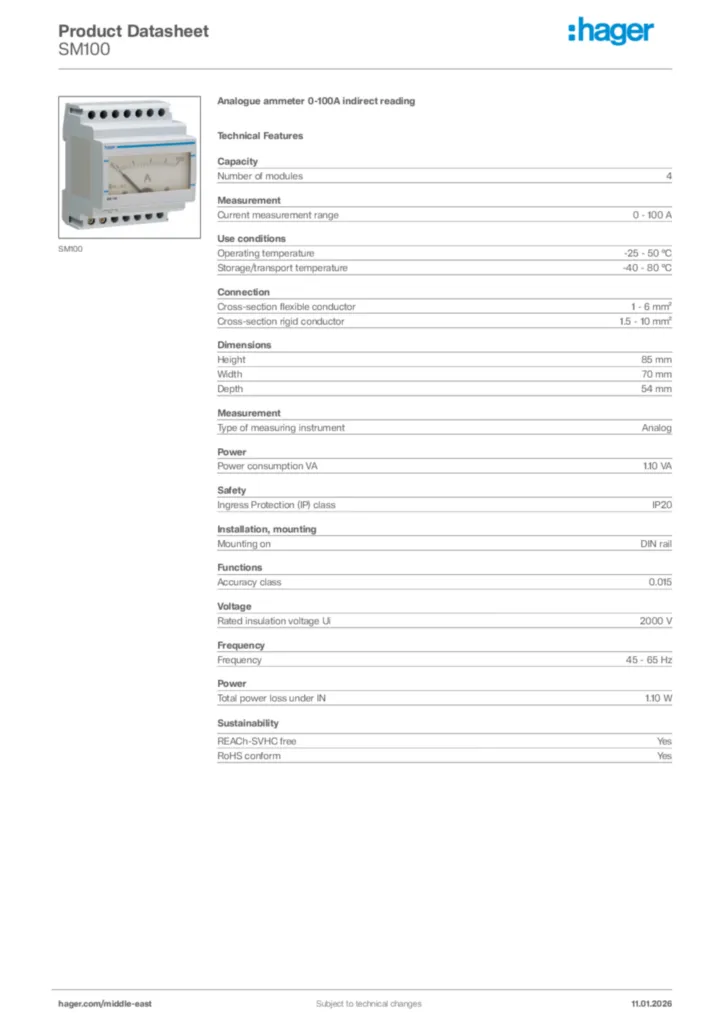

      Image Hager Product data sheet SM100 | Hager

      Hager Product data sheet SM100

      Analogue ammeter 0-100A indirect reading

      PDF

    • Product data sheet

      Image UK_MD_TDS_AnalogueVoltmereammeter | Hager

      UK_MD_TDS_AnalogueVoltmereammeter

      Product data sheet en-GB 2024-03-22

      PDF
      86,21 kB
