2-pole, 63A Modular Switch SBN263N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical characteristics
Architecture
-
Number of poles2
-
Control/operation elementToggle
-
Type of pole2P
Electric current
-
Rated current IN63 A
-
Breaking capacity 400 V AC23A1,332 A
-
Acceptable current rating AC21 category A63 A
-
Acceptable current rating AC21 category B63 A
-
Acceptable current rating AC22 category A63 A
-
Acceptable current rating AC22 category B63 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-31.33 kA
-
Rated short-time withstand current Icw 1s IEC 609470.94 kA
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue415 - 415 V
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp6,000 V
Capacity
-
Number of modules2
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth68 mm
Equipment
-
Number of NO contacts2
Use conditions
-
Operating temperature-20 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor2.5 - 16 mm²
-
Cross-section rigid conductor2.5 - 25 mm²
Endurance
-
Number of mechanical operations60,000
-
Electrical durability at nominal load in AC21 in operating cycles5,000
-
Electrical durability at nominal load in AC22 in operating cycles5,000
Power
-
Power dissipation at IN4.60 W
-
Power loss per pole at In2.30 W
Connectivity
-
Down connection alignment for modular devicesAligned terminal
-
Top connection alignment for modular devicesAligned terminal
Downloads
-
Product datasheet

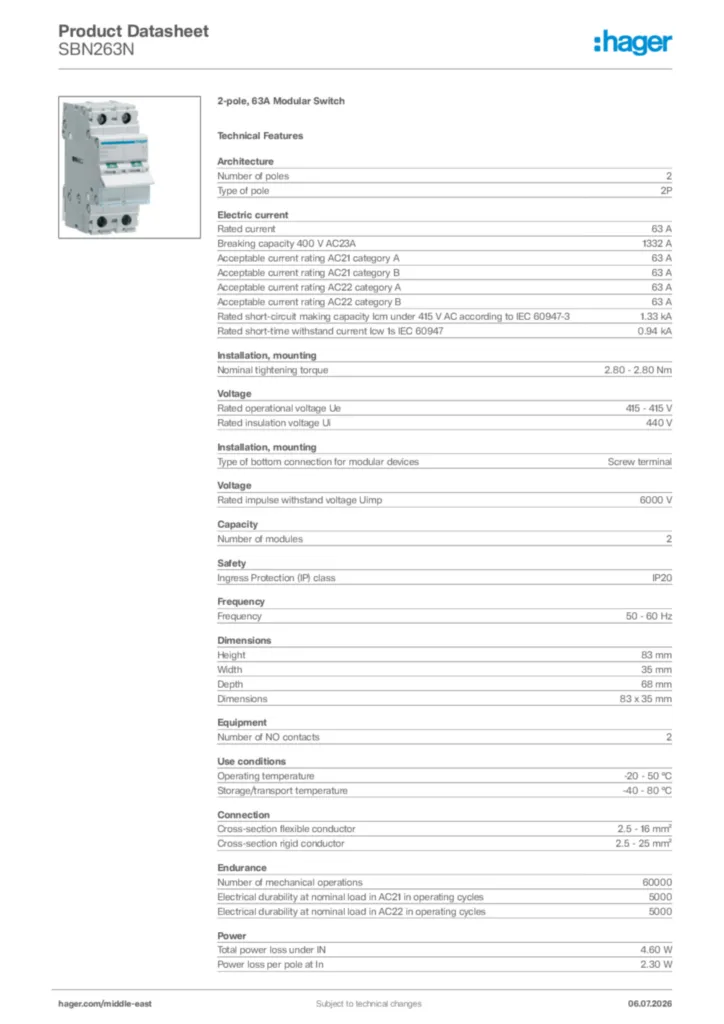

Hager Product data sheet SBN263N
