Switch DC 4P 1000V 32A SB432PV
EAN-Nr.
3250615521392
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles4
-
Type of pole4P
Capacity
-
Number of modules3.50
Electric current
-
Rated current32 A
Voltage
-
Type voltage supplyDC
-
Rated insulation voltage Ui1,000 V
-
Rated operational voltage in DC1,000 - 1,000 V
Installation, mounting
-
Nominal tightening torque1.80 - 1.80 Nm
Dimensions
-
Height85 mm
-
Width61.25 mm
-
Depth72 mm
Power
-
Total power loss under IN6.90 W
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-40 - 65 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Connection
-
Cross-section flexible conductor4 - 10 mm²
-
Cross-section rigid conductor4 - 16 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

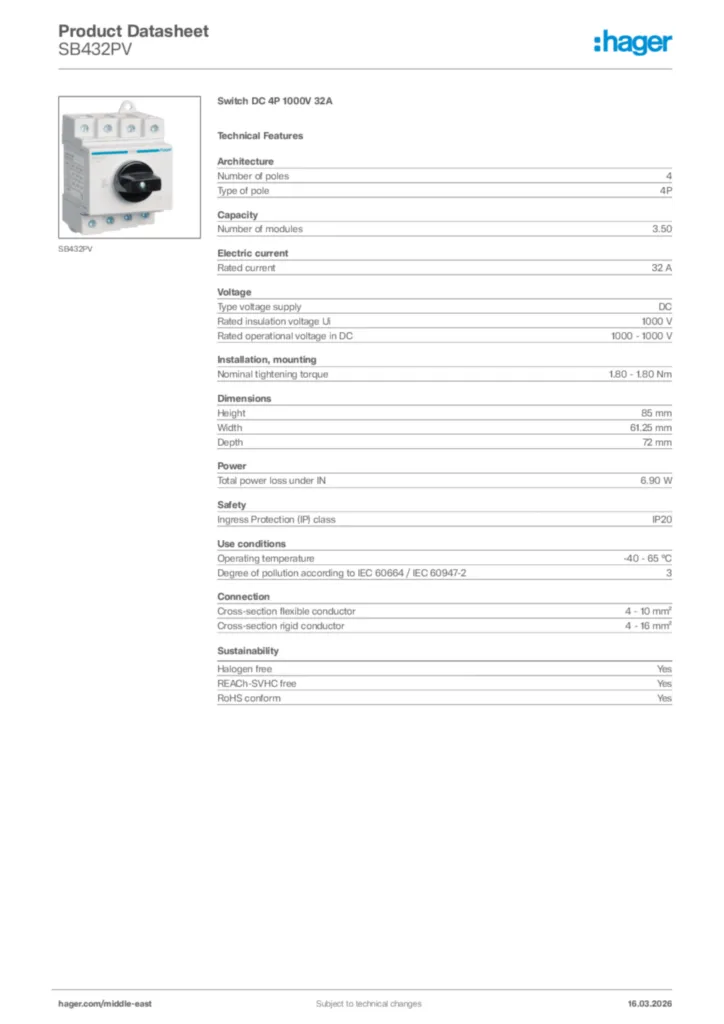

Product datasheet
