Switch 4X25A 400V POS IND SB425
EAN-Nr.
3250615524256
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Architecture
-
Number of poles4
-
Type of pole4P
Electric current
-
Rated current25 A
-
Rated conditional short-circuit current Icc with gl-gG fuses10 kA
-
Acceptable current rating AC22 category A25 A
Installation, mounting
-
Nominal tightening torque2.90 - 2.90 Nm
Voltage
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp3,000 V
Capacity
-
Number of modules2
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height85 mm
-
Width36 mm
-
Depth72 mm
Equipment
-
Number of NO contacts4
-
Number of NC contacts0
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor10 mm²
-
Cross-section rigid conductor16 mm²
Endurance
-
Number of mechanical operations150,000
-
Electrical durability at nominal load in AC22 in operating cycles30,000
Power
-
Total power loss under IN3.60 W
Downloads
-
Product datasheet

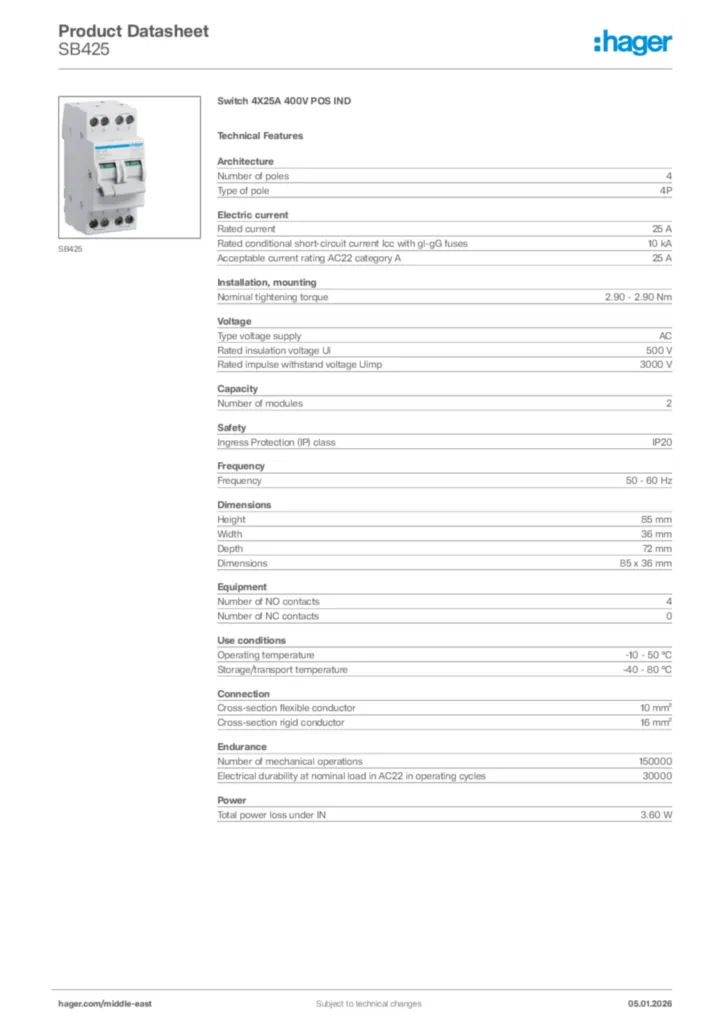

Hager Product data sheet SB425
