EAN-Nr.

3599430011429

Packaging

1 piece

Door station AUDIO 1/1 2-wire stainless steel matt one REQ001X

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Housing size 1 flush-mounted for door station stainless steel one

Housing size 1 surface-mounted for door station stainless steel one

Referenced by 2 products available

Technical characteristics

Surface finish

Matt
Material

Stainless steel

Number of call buttons

1

Operating voltage

24 - 24 V

Height

242 mm
Width

133.50 mm
Depth

25 mm

Operating temperature

-20 - 55 °C
Storage/transport temperature

-30 - 80 °C

Door communication type

Audio

Conductor cross-section

0 - 0 mm²

Mounting on

Flush mounting, Surface mounting

Installation mode

For vertical mounting, Break-proof flush-mounted call buttons, Installation in surface-mounted or flush-mounted housings
Junction

Pluggable connection terminal block with screw terminals
Lighting

Durable, homogeneous, white LED call push-button backlighting
Protection

Loudspeaker and microphone protected against sabotage

Downloads

Product Image REQ001X

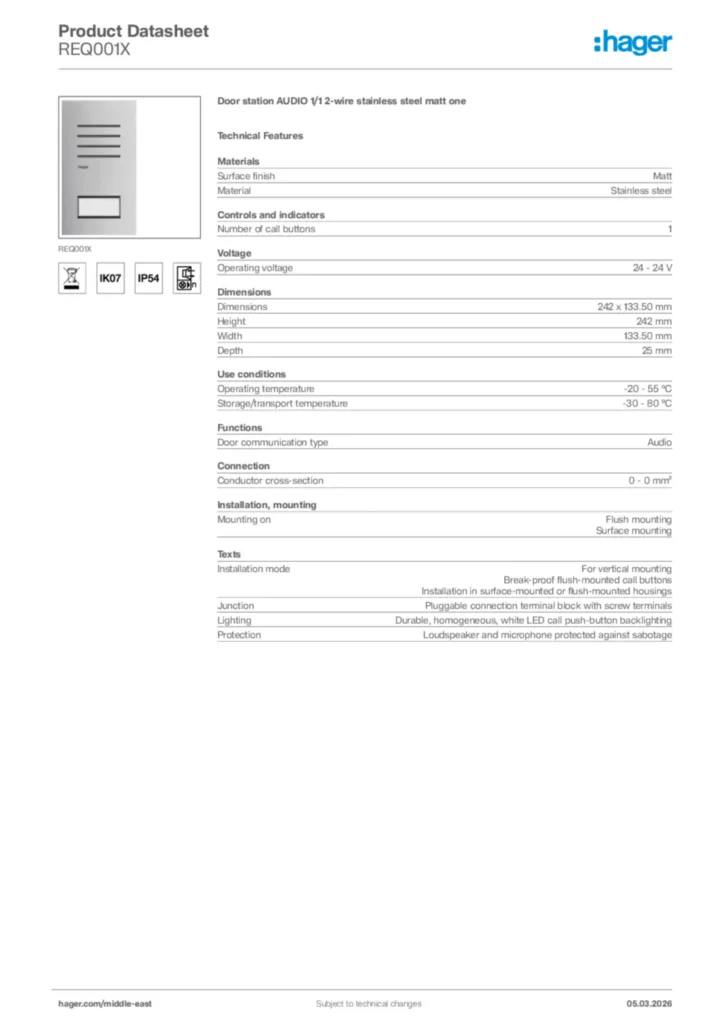

Product datasheet

Hager Product data sheet REQ001X

Door station AUDIO 1/1 2-wire stainless steel matt one

PDF
Instruction manual

Instruction manual en-GB 2018-03-06

PDF

396,80 kB
