VIDEO module built-in 2-wire stainless steel matt modesta REN610X
EAN-Nr.
3599430013539
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
D-Sub coupler 3 products available
Technical characteristics
Connectivity
-
Mounting typeBuilt in installation
Materials
-
Surface finishMatt
-
MaterialMetal, Stainless steel
Controls and indicators
-
Number of call buttons0
Voltage
-
Operating voltage24 - 24 V
Dimensions
-
Height120 mm
-
Width120 mm
-
Depth36 mm
-
Camera dome diameter33 mm
Use conditions
-
Operating temperature-20 - 55 °C
-
Storage/transport temperature-30 - 80 °C
Power
-
Power consumption during operation5.80 VA
-
Power consumption standby0.14 W
Functions
-
FunctionViewing
Compatibility
-
Installation technique for door communication2-wire
Connection
-
Conductor cross-section0 - 0 mm²
Equipment
-
Modular constructionYes
Texts
-
Installation modeInstallation in surface-mounted or flush-mounted housings
-
JunctionPluggable connection terminal block with screw terminals, Connection for module Connecting cable
-
LightingInvisible, glare-free IR LED night lighting
-
ProtectionLoudspeaker and microphone protected against sabotage
Downloads
-
Product datasheet

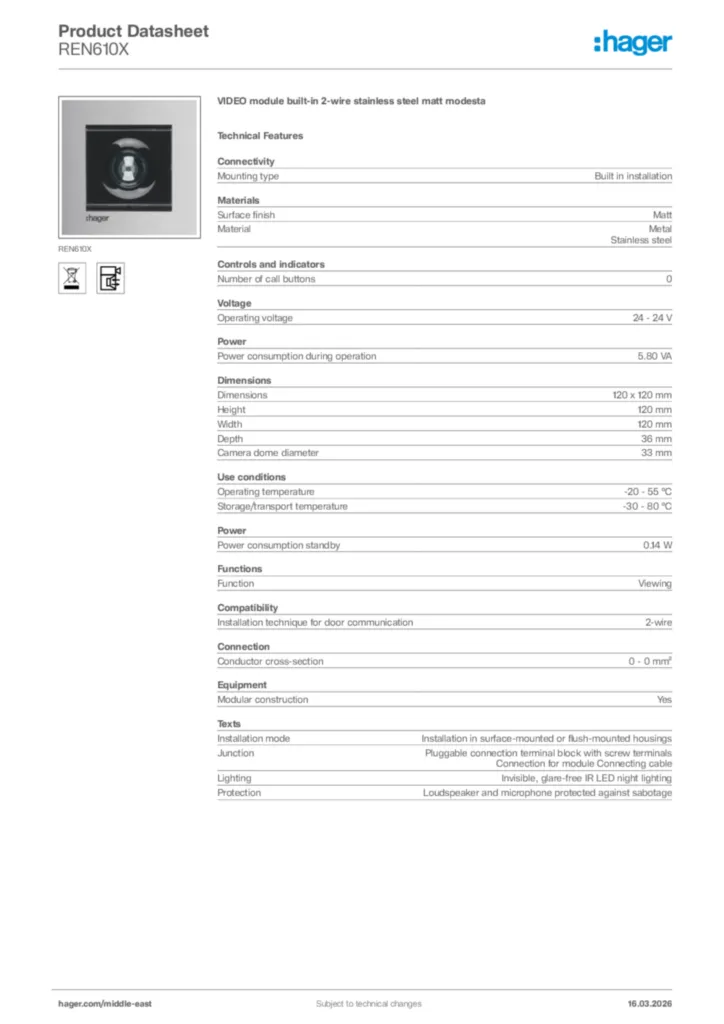

Hager Product data sheet REN610X
VIDEO module built-in 2-wire stainless steel matt modesta
PDF -
Instruction manual
Instruction manual en-GB 2017-12-22
PDF6,31 MB
Instruction manual en-GB 2018-03-06
PDF396,80 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2022-10-13
PDF203,42 kB
More documentation
