Transponder reader module built-in stainless steel matt modesta REN230X
EAN-Nr.
3599430013553
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Electronic data medium for switchgear 2 products available
Complete your system
Technical characteristics
Dimensions
-
Height120 mm
-
Width120 mm
-
Depth31 mm
Materials
-
ColourStainless steel
-
TreatmentBrushed
-
MaterialMetal, Stainless steel
Equipment
-
Number of simultaneous access Ids200
-
Contact lessYes
-
Stand-aloneYes
-
Change over contact potential freemax. 24V/1A
Voltage
-
Operating voltage DC12 - 24 V
-
Operating voltage at AC 50 Hz12 - 15 V
-
Operating voltage at AC 60 Hz12 - 15 V
Texts
-
Installation modeMounting in MODESTA frame
-
JunctionPotential-free changeover contact 24 V/1 A
-
Main functionsAccess control via RFID transponder, Selective deleting of single ID cards, Stand-alone operation without further control unit, Memory slot for up to 200 ID cards/transponders
-
Reader unitBehind flush-fitting acrylic glass pane, Wound "radio key" symbol, 2x digit LED display for indication of active storage space
-
VoltageWithout PoE power supply
Power
-
Current consumption200 mA
Functions
-
Access control systemTransponder reader
Connection
-
Conductor cross-section0 - 0 mm²
Connectivity
-
ConnectableNo
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-20 - 55 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

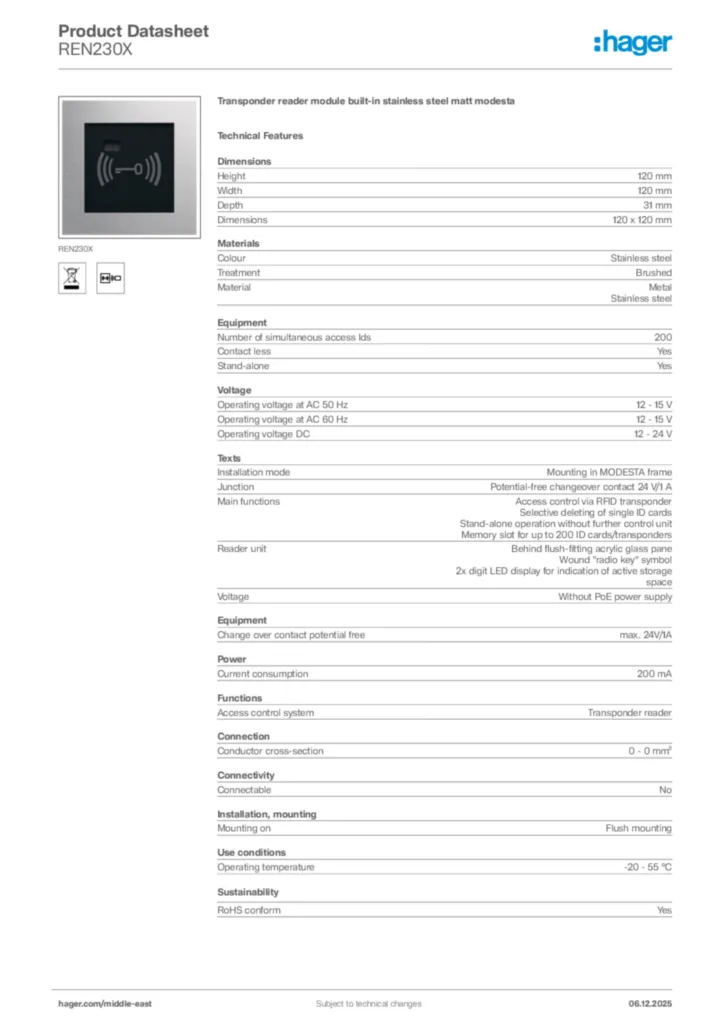

Hager Product data sheet REN230X
