Alarm contact for motor starter 2C MZ527N
EAN-Nr.
3250614565120
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 13 products available
Referenced by
-
MM513NMotor protection circuit breaker 3P 20-25A ; 5.5/12.5 kW at 230/415V
-
MM512NMotor protection circuit breaker 3P 16-20A ; 5.5/9 kW at 230/415V
-
MM503NMotor protection circuit breaker 3P 0.25-0.4A ; 0.06/0.09 kW at 230/415V
-
MM502NMotor protection circuit breaker 3P 0.16-0.25A ; 0.03/0.06 kW at 230/415V 230/41
-
MM511NMotor protection circuit breaker 3P 10-16A ; 4/7.5 kW at 230/415V
-
MM510NMotor protection circuit breaker 3P 6.3-10A ; 2.2/4 kW at 230/415V
-
MM509NMotor protection circuit breaker 3P 4-6.3A ; 1.1/2.2 kW at 230/415V
-
MM508NMotor protection circuit breaker 3P 2.5-4A ; 0.75/1.5 kW at 230/415V
-
MM505NMotor protection circuit breaker 3P 0.63-1A ; 0.12/0.25 kW at 230/415V
-
MM504NMotor protection circuit breaker 3P 0.4-0.63A ; 0.09/0.12 kW at 230/415V
-
MM507NMotor protection circuit breaker 3P 1.6-2.5A ; 0.37/0.75 kW at 230/415V
-
MM506NMotor protection circuit breaker 3P 1-1.6A ; 0.25/0.55 kW at 230/415V
-
MM501NMotor protection circuit breaker 3P 0.1-0.16A ; 0.02/0.03 kW at 230/415V
Technical characteristics
Electric current
-
Rated current1 A
-
Rated current 230 V AC153.50 A
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeDIN rail adapter
Capacity
-
Number of modules0.50
Connection
-
Type of contacts2NO
-
Cross-section flexible conductor2.5 mm²
-
Cross-section rigid conductor2.5 mm²
Voltage
-
Rated insulation voltage Ui690 V
-
Rated impulse withstand voltage Uimp6,000 V
-
Type voltage supplyAC
Frequency
-
Frequency40 - 60 Hz
Endurance
-
Number of mechanical operations10,000
-
Electric endurance in number of cycles5,000
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 80 °C
Power
-
Total power loss under IN0.20 W
Dimensions
-
Width9 mm
-
Depth68 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts0
Safety
-
Ingress Protection (IP) classIP20
Downloads
-
Product datasheet

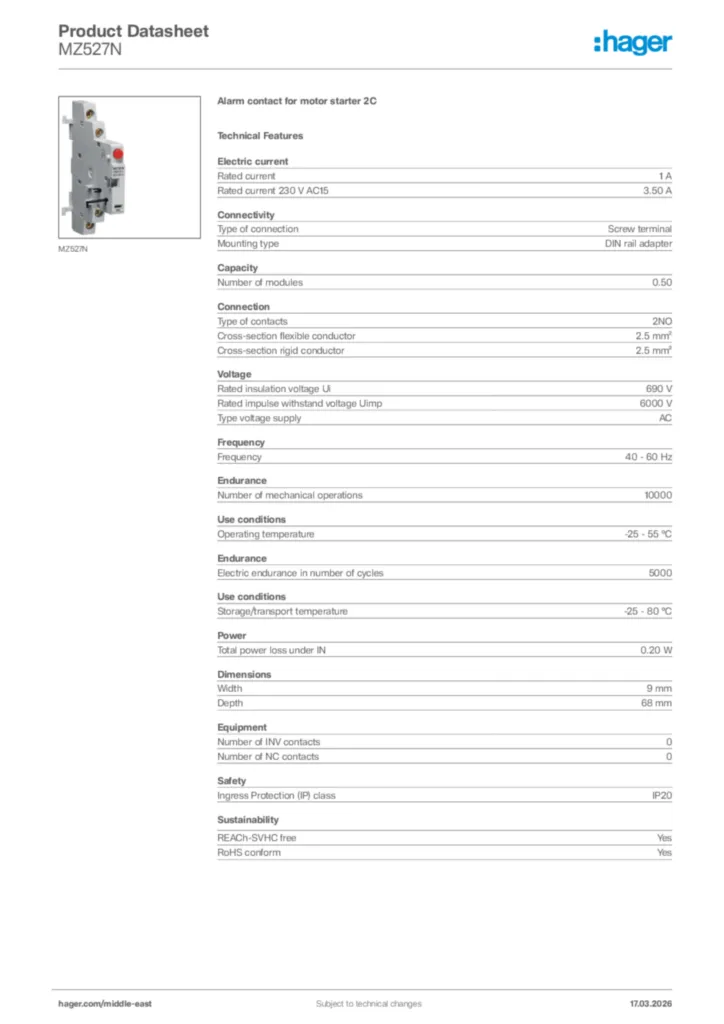

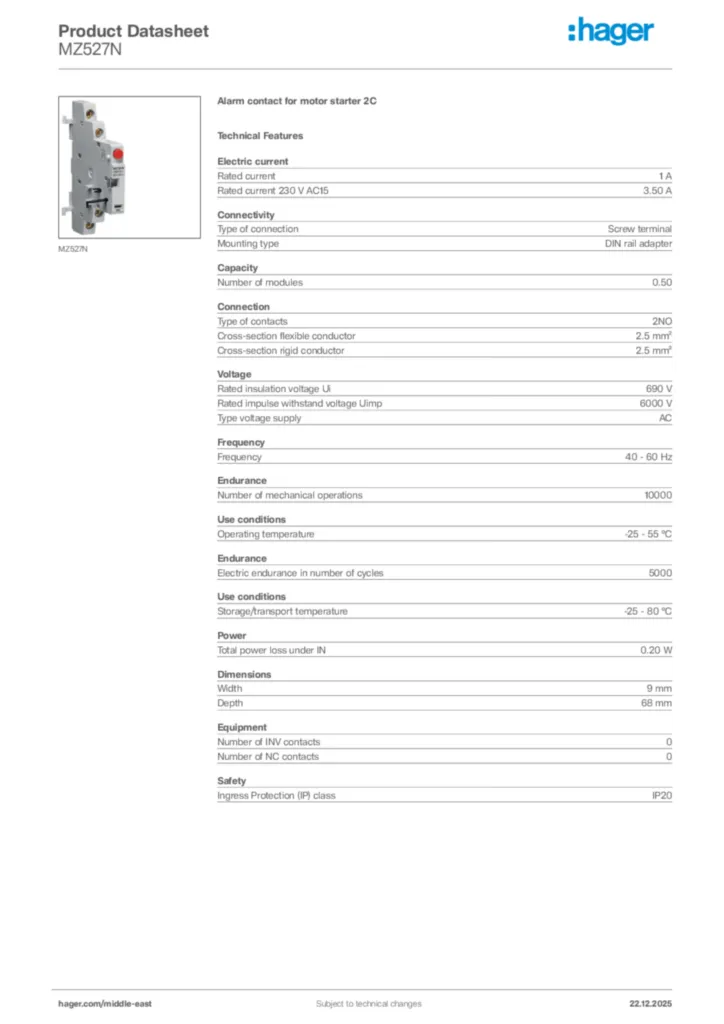

Hager Product data sheet MZ527N
