Fuse carrier 3P+N 50A 690V L51 accessoriability 6M LS604

Accessories
Technical characteristics
Environmental value
Documentations
More products

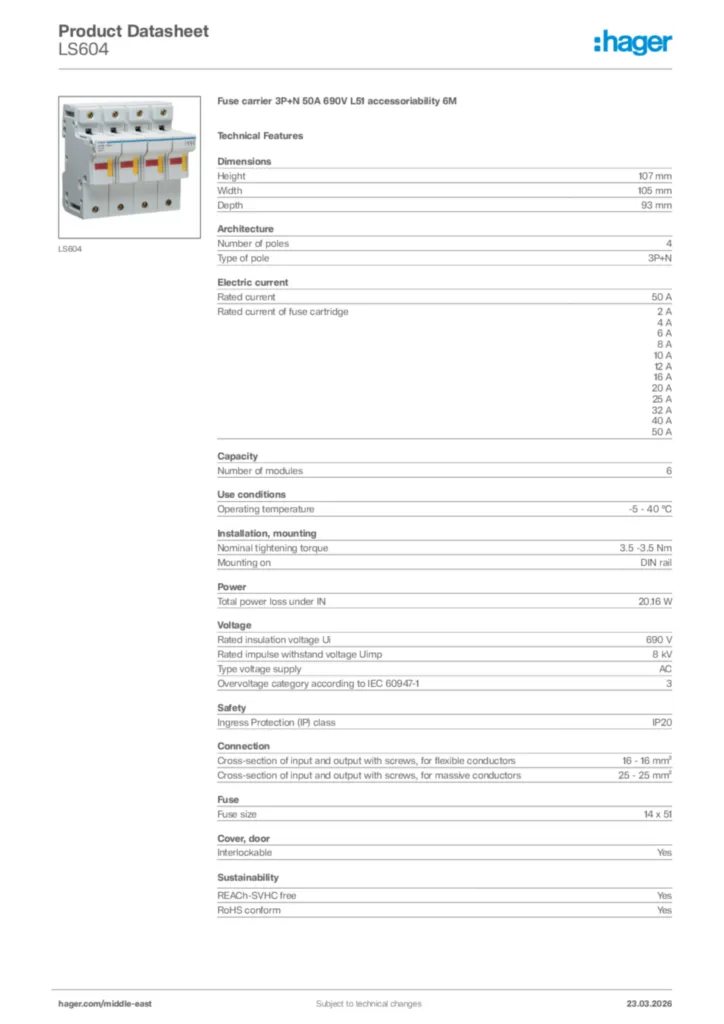

Download the sheet

Complete your system

Cylindrical fuse 23 products available
Accessories/spare parts for low-voltage switch technology 2 products available

Technical characteristics

Height

107 mm
Width

105 mm
Depth

93 mm

Number of poles

4

Rated current

50 A
Rated current of fuse cartridge

2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A

Number of modules

6

Number of half modules of 17,5 mm

12

Operating temperature

-5 - 40 °C

Nominal tightening torque

3.5 -3.5 Nm
Mounting on

DIN rail

Total power loss under IN

20.16 W

Rated insulation voltage Ui

690 V
Rated impulse withstand voltage Uimp

8 kV
Type voltage supply

AC
Overvoltage category according to IEC 60947-1

3

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

16 - 16 mm²
Cross-section of input and output with screws, for massive conductors

25 - 25 mm²

Fuse size

14 x 51

Interlockable

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
