Fuse carrier 3P+N 32A 690V L38 4M LS504

EAN-Nr.

3250614123771

Packaging

3 Pieces

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Environmental value
Documentations

Download the sheet

Complete your system

Cylindrical fuse 23 products available

Technical characteristics

Height

83 mm
Width

72 mm
Depth

75 mm

Number of poles

3

Rated current

32 A

Number of modules

4

Number of half modules of 17,5 mm

8

Operating temperature

-5 - 50 °C

Nominal tightening torque

2.20 - 2.20 Nm
Mounting on

DIN rail

Total power loss under IN

14.50 W

Rated insulation voltage Ui

690 V
Type voltage supply

AC

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

0.75 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Fuse size

10 x 38

Interlockable

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration LS504

PDF

Hager RoHS report LS504

PDF

Downloads

Product Image LS504
Product datasheet

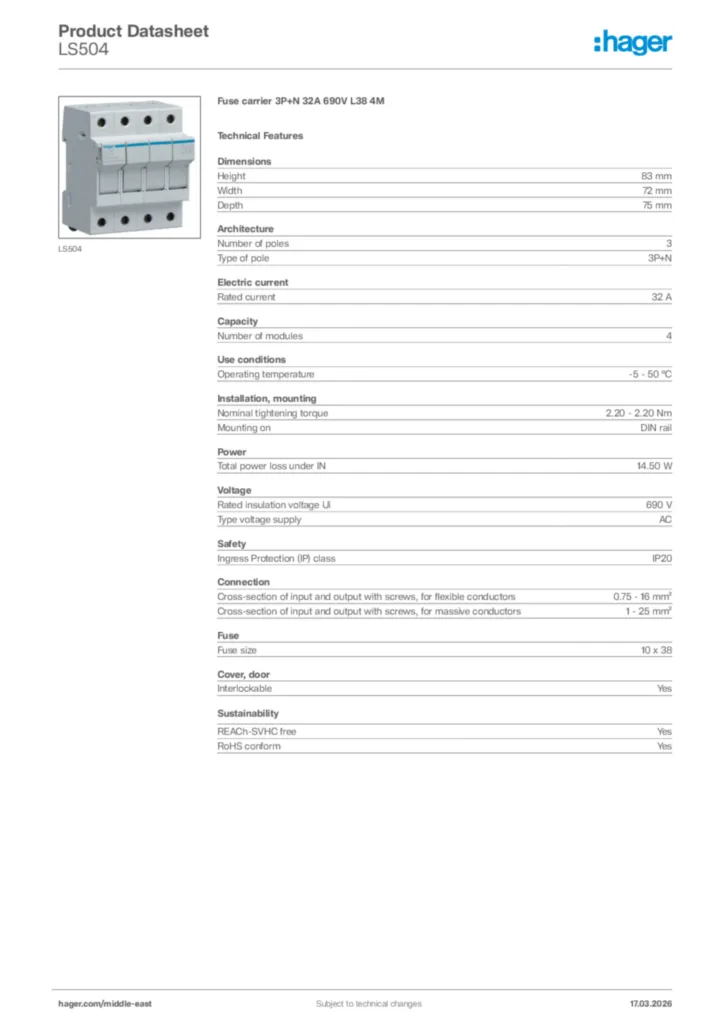

Hager Product data sheet LS504

Fuse carrier 3P+N 32A 690V L38 4M

PDF
Declaration of conformity

Declaration

Declaration of conformity International 2019-09-17

PDF

126,64 kB

Declaration

Declaration of conformity International 2023-03-14

PDF

894,70 kB
