EAN-Nr.

3250614123764

Packaging

4 Pieces

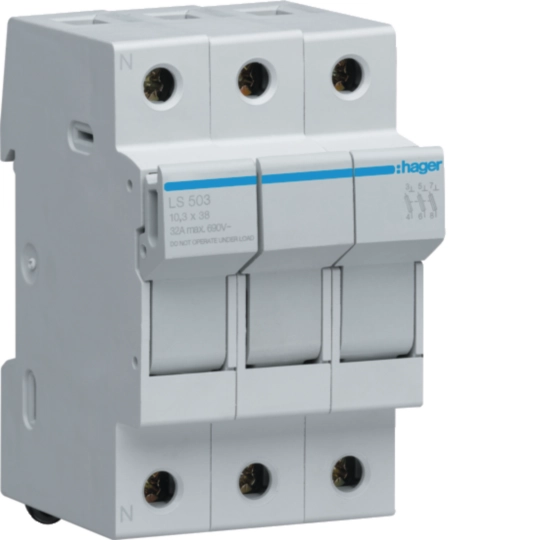

Fuse 3P 32A 690V L38 3M LS503

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Cylindrical fuse 23 products available

Technical characteristics

Height

83 mm
Width

54 mm
Depth

75 mm

Number of poles

3
Type of pole

3P

Rated current

32 A

Number of modules

3

Number of half modules of 17,5 mm

6

Operating temperature

-5 - 50 °C

Nominal tightening torque

2.20 - 2.20 Nm
Mounting on

DIN rail

Total power loss under IN

11.10 W

Rated insulation voltage Ui

690 V
Type voltage supply

AC

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

0.75 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Fuse size

10 x 38

Interlockable

Yes

Downloads

Product Image LS503

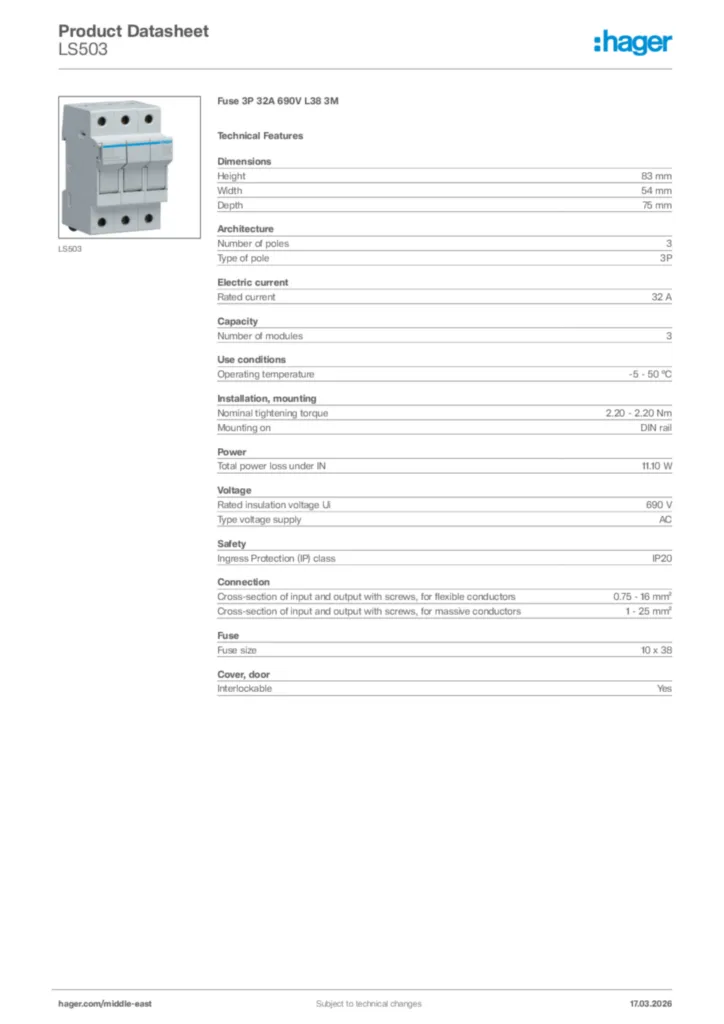

Product datasheet

Hager Product data sheet LS503

Fuse 3P 32A 690V L38 3M

PDF
Declaration of conformity

Declaration

Declaration of conformity International 2019-09-17

PDF

126,64 kB

Declaration

Declaration of conformity International 2023-03-14

PDF

894,70 kB
