EAN-Nr.

3250614123740

Packaging

12 Pieces

Fuse 1P 32A 690V L38 1M LS501

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Cylindrical fuse 23 products available

Technical characteristics

Height

83 mm
Width

18 mm
Depth

75 mm

Number of poles

1
Type of pole

1P

Rated current

32 A

Number of modules

1

Operating temperature

-5 - 50 °C

Nominal tightening torque

2.20 - 2.20 Nm
Mounting on

DIN rail

Total power loss under IN

7.40 W

Rated insulation voltage Ui

690 V
Type voltage supply

AC

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

0.75 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Fuse size

10 x 38

Interlockable

Yes

Downloads

Product Image LS501
Product datasheet

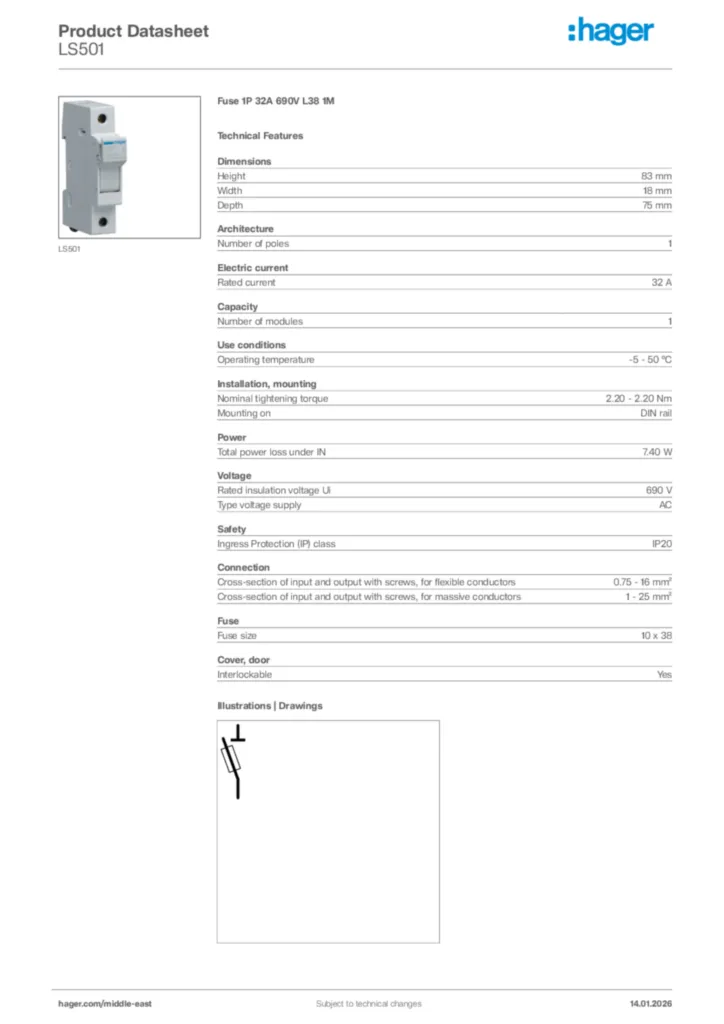

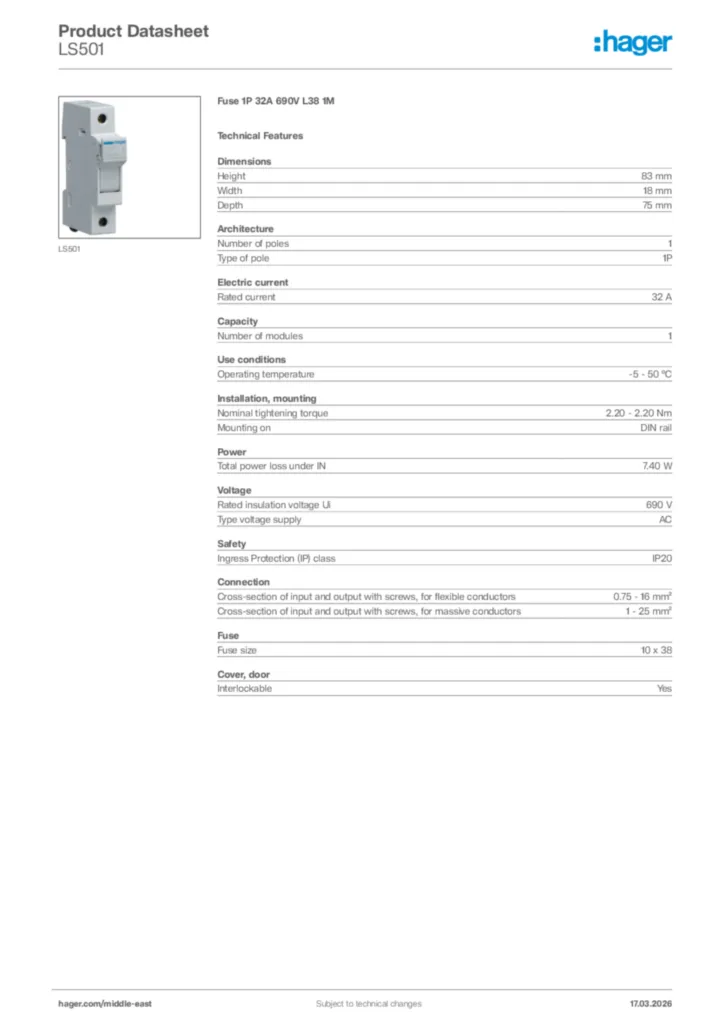

Hager Product data sheet LS501
