PV Fuse-link 10x38 mm 1000V DC 10A LF310PV

EAN-Nr.
3250614061554
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

PV Fuse-link 10x38 mm 1000V DC 10A

LF310PV

  • Technical characteristics
  • Environmental value
  • Documentations
Download the sheet

Technical characteristics

Fuse
  • Fuse characteristics
    gPV
  • Fuse size
    10.3 x 38
Electric current
  • Rated current
    10 A
Power
  • Total power loss under IN
    2.58 W
Main electrical attributes
  • Rated short-circuit breaking capacity Icn AC according to IEC 60898-1
    30 kA
Voltage
  • Type voltage supply
    DC
  • Nominal voltage
    1,000 - 1,000 V
Architecture
  • Curve
    C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes
Halogen free Yes

Certifications and documents

Hager REACH declaration LF310PV
PDF
Hager RoHS report LF310PV
PDF

Downloads

  • Image LF310PV | Hager

    Product Image LF310PV

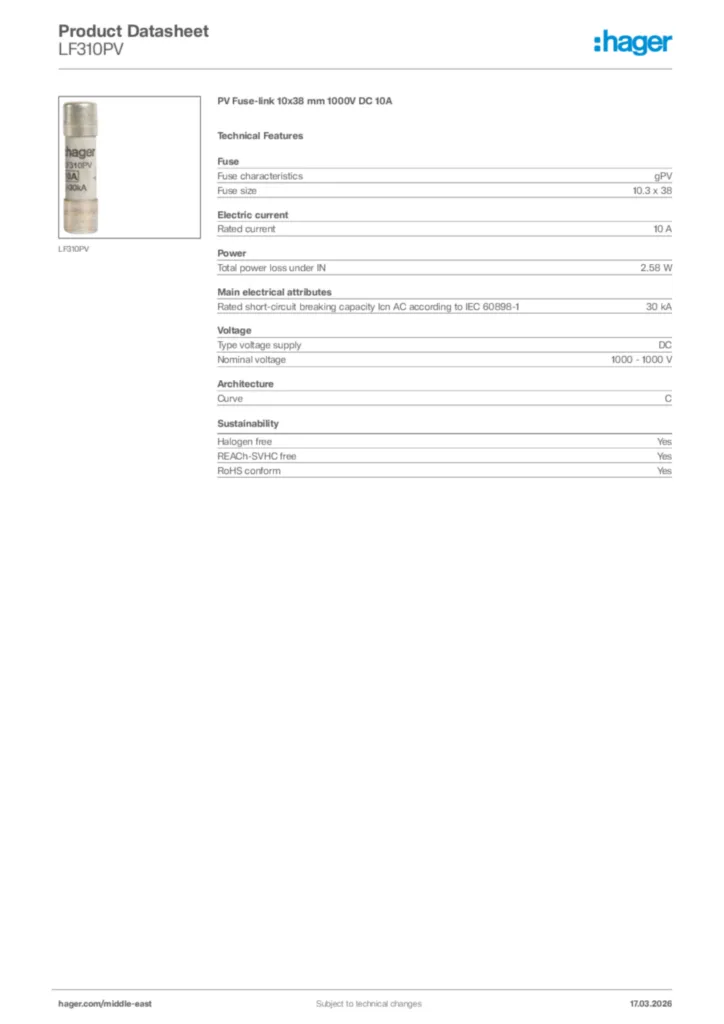

  • Product datasheet

    Image Hager Product data sheet LF310PV | Hager

    Hager Product data sheet LF310PV

    PV Fuse-link 10x38 mm 1000V DC 10A

    PDF

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-03-09

    PDF
    916,99 kB
