    • LF306PV
    EAN-Nr.
    3250614061530
    Packaging
    10 Pieces

    PV Fuse-link 10x38 mm 1000V DC 6A LF306PV

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    PV Fuse-link 10x38 mm 1000V DC 6A

    LF306PV

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Fuse
    • Fuse characteristics
      gPV
    • Fuse size
      10.3 x 38
    Electric current
    • Rated current
      6 A
    Power
    • Total power loss under IN
      2.40 W
    Main electrical attributes
    • Rated short-circuit breaking capacity Icn AC according to IEC 60898-1
      30 kA
    Voltage
    • Type voltage supply
      DC
    • Nominal voltage
      1,000 - 1,000 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration LF306PV
    PDF
    Hager RoHS report LF306PV
    PDF

    Downloads

    • Image LF306PV | Hager

      Product Image LF306PV

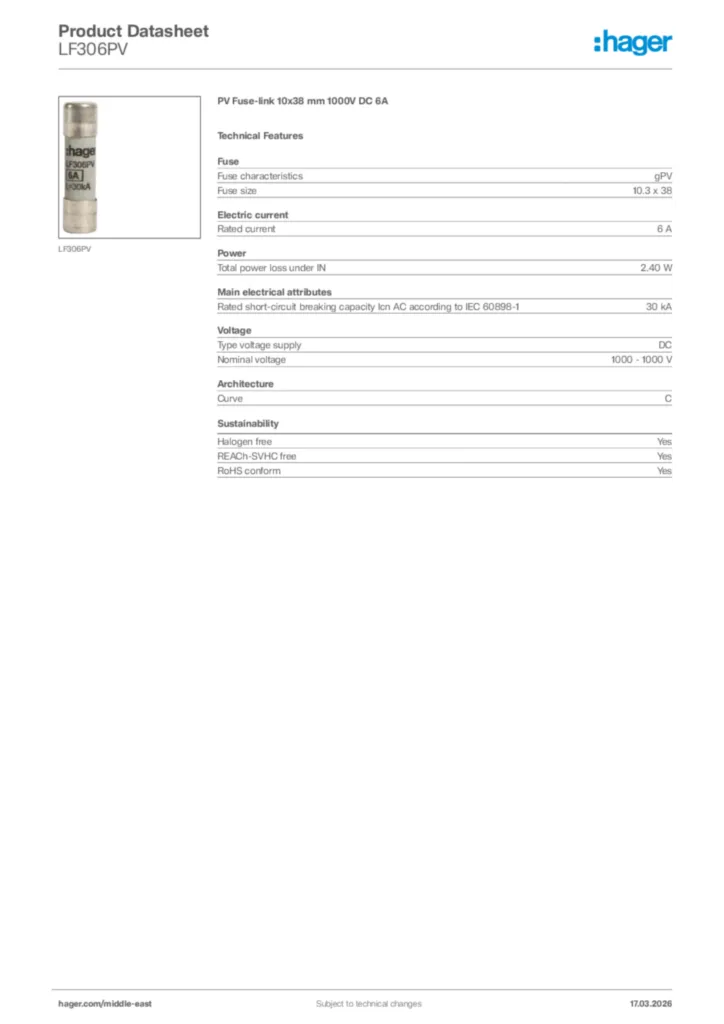

    • Product datasheet

      Image Hager Product data sheet LF306PV | Hager

      Hager Product data sheet LF306PV

      PV Fuse-link 10x38 mm 1000V DC 6A

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      916,99 kB
