Fuse carrier 1P+N 20A 400V 1M L12601
EAN-Nr.
3250610100530
Packaging
12 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Dimensions
-
Height77 mm
-
Width17.50 mm
-
Depth75 mm
Architecture
-
Number of poles1
Electric current
-
Rated current20 A
-
Rated current of fuse cartridge0.5 A, 1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A
Capacity
-
Number of modules1
Internal use only
-
Number of half modules of 17,5 mm2
Use conditions
-
Operating temperature-5 - 40 °C
Installation, mounting
-
Nominal tightening torque1.80 - 1.80 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN1.50 W
Voltage
-
Type voltage supplyAC
Safety
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of input and output with screws, for flexible conductors10 - 10 mm²
-
Cross-section of input and output with screws, for massive conductors16 - 16 mm²
Fuse
-
Fuse size8.5 x 31.5
Cover, door
-
InterlockableNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

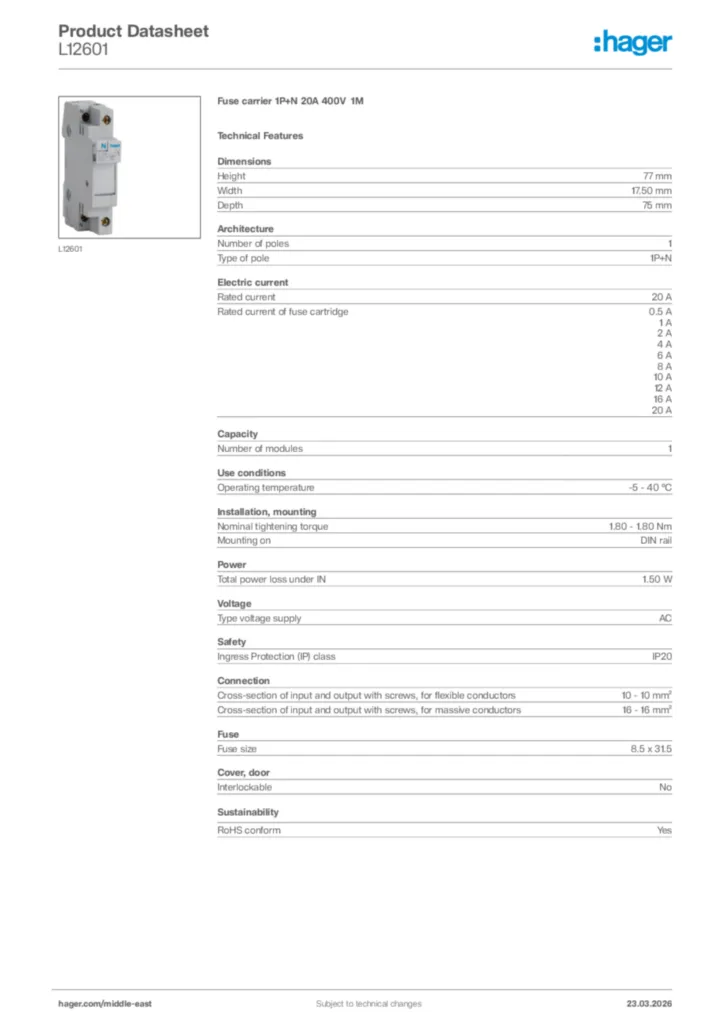

Product datasheet
Hager Product data sheet L12601
Fuse carrier 1P+N 20A 400V 1M
PDF -

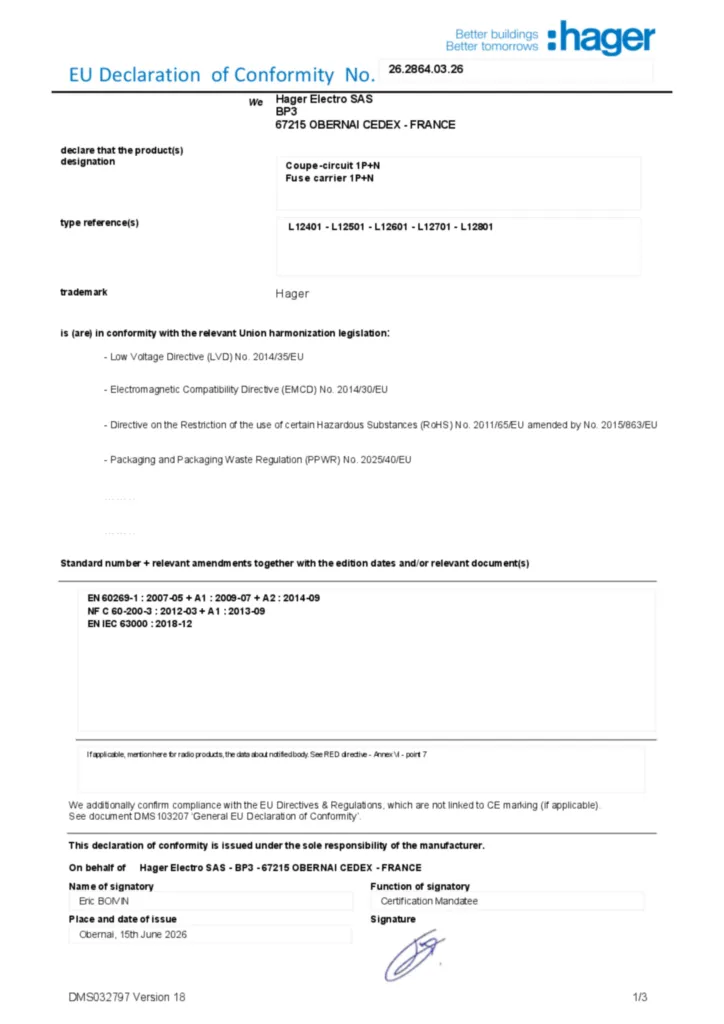

Declaration of conformity
Declaration
Declaration of conformity International 2022-04-08
PDF312,81 kB
