    EAN-Nr.
    3250613740481
    Packaging
    1 piece
    • Busbars

    Insulated busbar 1P 100A fork 20mm² 57M KD190B

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 1P 100A fork 20mm² 57M

    KD190B

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Electric current
    • Rated current
      100 A
    Architecture
    • Number of poles
      1
    Dimensions
    • Length
      1,000 mm
    Voltage
    • Rated impulse withstand voltage Uimp
      4,000 V
    • Rated operational voltage Ue
      415 - 415 V
    Connection
    • Cross-section rigid conductor
      20 mm²
    • Connector/plug type
      Phase busbar with fork
    Capacity
    • Number of modules
      57

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration KD190B
    PDF
    Hager RoHS report KD190B
    PDF

    Downloads

    • Image KD190B | Hager

      Product Image KD190B

    • Product datasheet

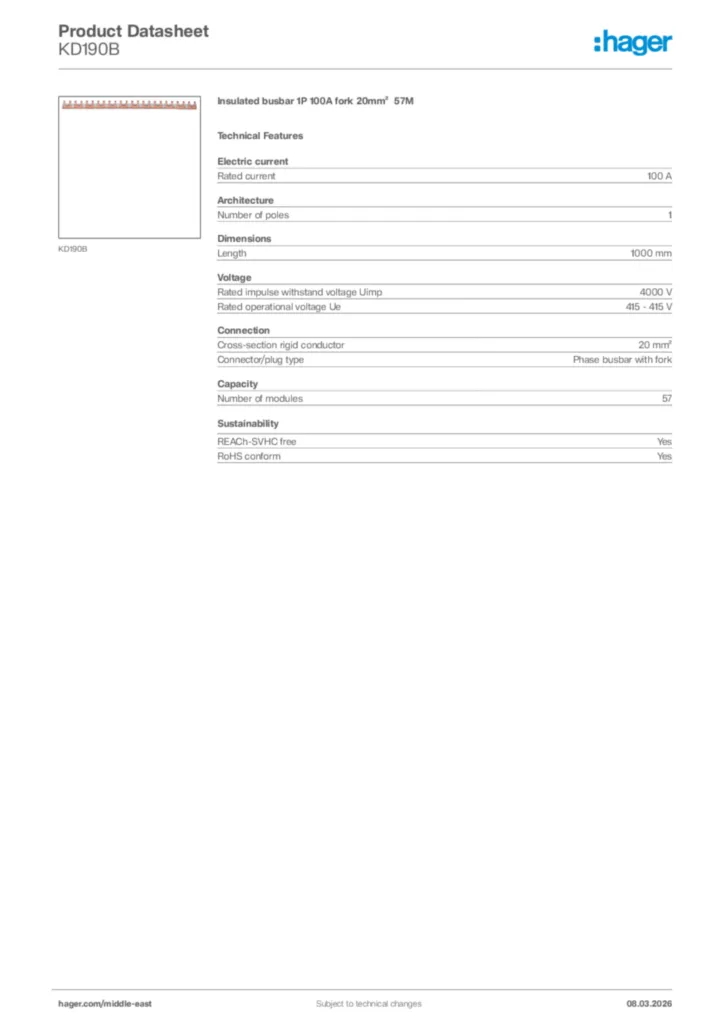

      Image Hager Product data sheet KD190B | Hager

      Hager Product data sheet KD190B

      Insulated busbar 1P 100A fork 20mm² 57M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
