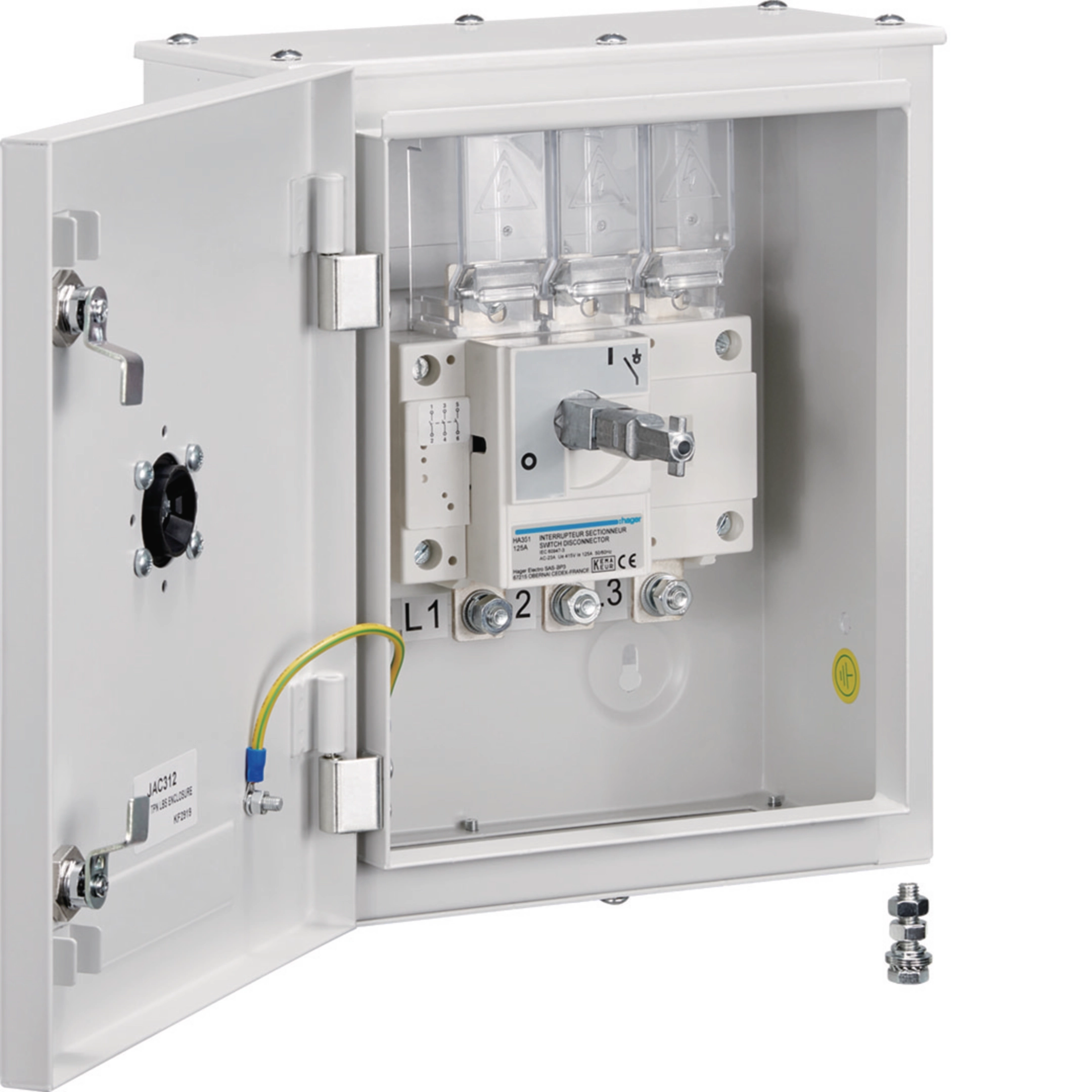

Enclosed Switch Disconnector TPN 125A JAC312
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Rated current125 A
-
Rated short-time withstand current Icw 1s IEC 609477 kA
Use conditions
-
Operating temperature-5 - +40 °C
Installation, mounting
-
Mounting onWall mounting
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8 V
Safety
-
Ingress Protection (IP) classIP41
Dimensions
-
Width250 mm
-
Depth150 mm
Downloads
-
Product datasheet
Hager Product data sheet JAC312
Enclosed Switch Disconnector TPN 125A
PDF -
Instruction manual
Instruction manual en-GB 2022-01-18
PDF9,34 MB -
Installation manual
notice interrupteurs sectionneurs fusibles sous coffret 20_800A
Installation manual en-GB, fr-FR 2020-01-01
PDF396,77 kB -
Product data sheet
UK_CD_TDS_BSEN60947-3
Product data sheet en-GB 2024-03-22
PDF55,57 kB
UK_CD_TDS_SwitchDisconnectors.pdf
Technical data sheet for switch disconnectors including characteristics.
PDF52,02 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-04-27
PDF821,00 kB
Declaration of conformity International 2023-12-20
PDF146,39 kB
Declaration of conformity International 2023-12-20
PDF153,13 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-05-13
PDF588,39 kB
