Alarm contact-Low level NO-NC right side (x630/P630) HXA028H
EAN-Nr.
3250613160319
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 299 products available
Referenced by
-
HMT101NRMoulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 100A 50kA FTC
-
HNJ631DEMoulded Case Circuit Breaker h3 x630 TM ADJ 4P4D N0-100% 630A 40kA FTC
-
HMS040NCMoulded Case Circuit Breaker h3+ P160 Energy 3P3D 40A 50kA CTC
-
HMS041NCMoulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 40A 50kA CTC
-
HMS100NCMoulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 50kA CTC
-
HMS101NCMoulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 100A 50kA CTC
-
HMS160NCMoulded Case Circuit Breaker h3+ P160 Energy 3P3D 160A 50kA CTC
-
HMS161NCMoulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 160A 50kA CTC
-
HMT040NRMoulded Case Circuit Breaker h3+ P250 Energy 3P3D 40A 50kA FTC
-
HMT041NRMoulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 40A 50kA FTC
-
HMT100NRMoulded Case Circuit Breaker h3+ P250 Energy 3P3D 100A 50kA FTC
-
HMW631NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 630A 50kA FTC
-
HMT160NRMoulded Case Circuit Breaker h3+ P250 Energy 3P3D 160A 50kA FTC
-
HMT161NRMoulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 160A 50kA FTC
-
HMT250NRMoulded Case Circuit Breaker h3+ P250 Energy 3P3D 250A 50kA FTC
-
HMT251NRMoulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 250A 50kA FTC
-
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC
-
HMW251NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 250A 50kA FTC
-
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC
-
HMW401NRMoulded Case Circuit Breaker h3+ P630 Energy 4P4D N0-50-100% 400A 50kA FTC
Technical characteristics
Electric current
-
Rated current0.10 A
-
Rated current 230 V AC150.10 A
Connectivity
-
Type of connectionquickconnect
-
Mounting typeClick mounting
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor0.5 - 1.25 mm²
-
Cross-section rigid conductor0.5 - 1.25 mm²
Voltage
-
Rated impulse withstand voltage Uimp1,500 V
-
Type voltage supplyAC/DC
Power
-
Total power loss under IN3 W
Equipment
-
Number of INV contacts1
-
Number of NC contacts0
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-

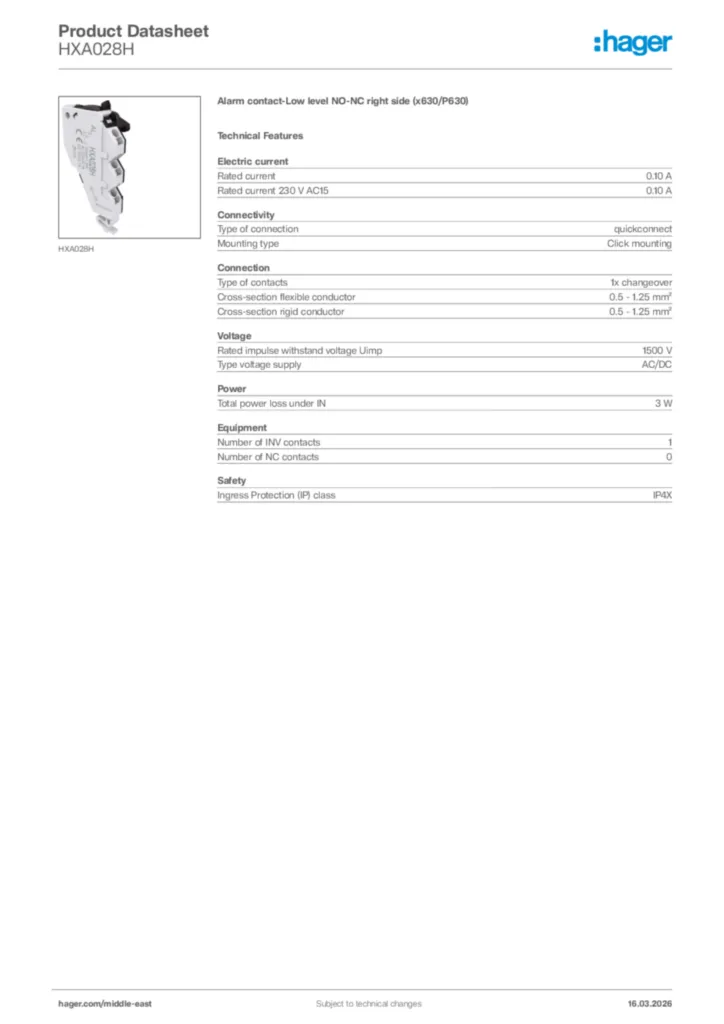

Product datasheet
Hager Product data sheet HXA028H
Alarm contact-Low level NO-NC right side (x630/P630)
PDF -
Installation manual
Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)
Installation manual International 2017-06-20
PDF6,65 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
More documentation
