Moulded Case Circuit Breaker h250 3P 50kA 250A TM HNG250U

EAN-Nr.
3250613247102
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
Phase out product: please contact your electrical wholesaler for availability

Moulded Case Circuit Breaker h250 3P 50kA 250A TM

HNG250U

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
Download the sheet

Complete your system

Optional accessories

  • Handle for power circuit breaker 1 products available
  • Under voltage coil 2 products available
  • Connection Functions 2 products available
  • Shunt release 3 products available
  • Auxiliaries contact block 2 products available
  • Auxiliaries interlocking cable 1 products available

Complete your system

  • Handle for power circuit breaker
  • Under voltage coil
  • Connection Functions
  • Shunt release
  • Auxiliaries contact block
  • Auxiliaries interlocking cable
  • HXC031H

    Extended rotary handle H250
    0.00 €  / *
  • HXC014H

    Undervoltage Release 200-240V AC (h250-h400-h630)
    0.00 €  / *
  • HXC011H

    Undervoltage Release 24V DC (h250-h400-h630)
    0.00 €  / *
  • HYB011H

    Spreader (x/P250-P250) 3P
    0.00 €  / *
  • HYB010H

    Straight extension (x/P250-P250) 4P
    0.00 €  / *
  • HXC004H

    Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
    0.00 €  / *
  • HXC005H

    Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
    0.00 €  / *
  • HXC001H

    Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
    0.00 €  / *
  • HXC021H

    Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
    0.00 €  / *
  • HXC024H

    Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
    0.00 €  / *
  • HXB068H

    Electrical interlock for Motor type A (x250-P250-h250)
    0.00 €  / *

Technical characteristics

Electric current
  • Rated current
    250 A
  • Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2
    50 kA
  • Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2
    85 kA
Architecture
  • Number of poles
    3
Frequency
  • Frequency
    50 - 60 Hz
Voltage
  • Rated impulse withstand voltage Uimp
    8,000 V
  • Rated insulation voltage Ui
    800 V
Functions
  • Trip unit
    TM A/A
Main electrical attributes
  • Magnetic protection trip time
    0 - 0 ms
Power
  • Total power loss under IN
    48.90 W
Endurance
  • Electric endurance in number of cycles
    1,000
  • Number of mechanical operations
    4,000
Safety
  • Ingress Protection (IP) class
    IP4X
Use conditions
  • Operating temperature
    -25 - 70 °C
Connection
  • Cross-section flexible conductor
    35 - 150 mm²
  • Cross-section rigid conductor
    35 - 185 mm²
  • Connector/plug type
    Terminal
Installation, mounting
  • Nominal tightening torque
    12 - 12 Nm
  • Mounting-/Connection Position
    Front
Settings
  • Thermal protection knob setting xIN
    0.63, 0.8, 1
  • Adjustment range short-term delayed short-circuit release
    0 - 0 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration HNG250U
PDF
Hager RoHS report HNG250U
PDF

Downloads

  • Image HNG250U | Hager

    Product Image HNG250U

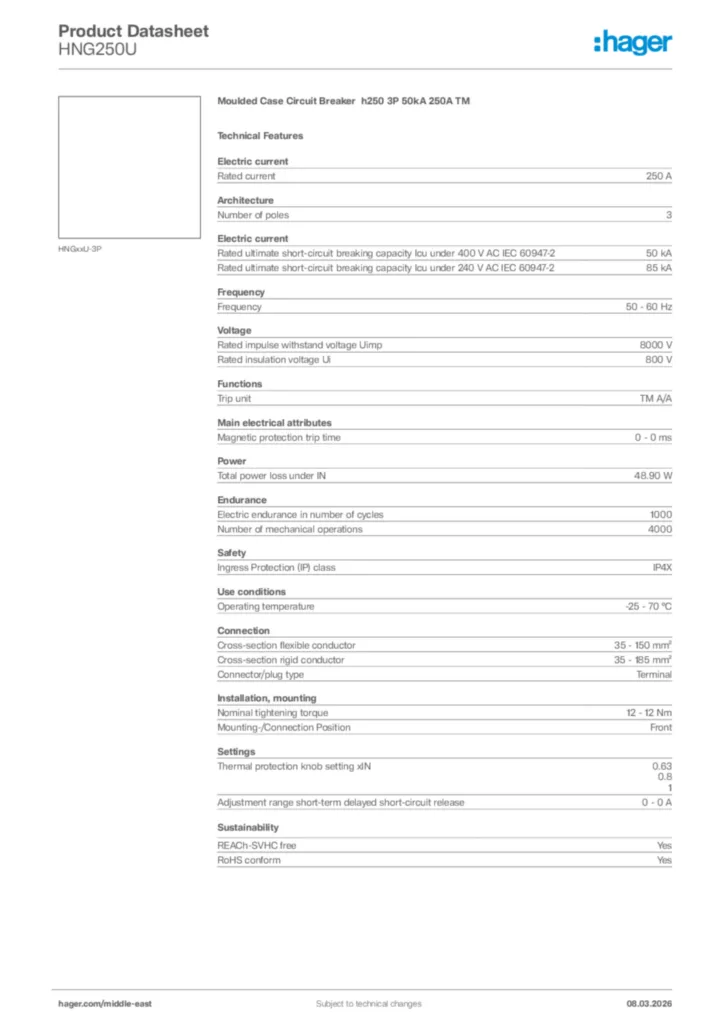

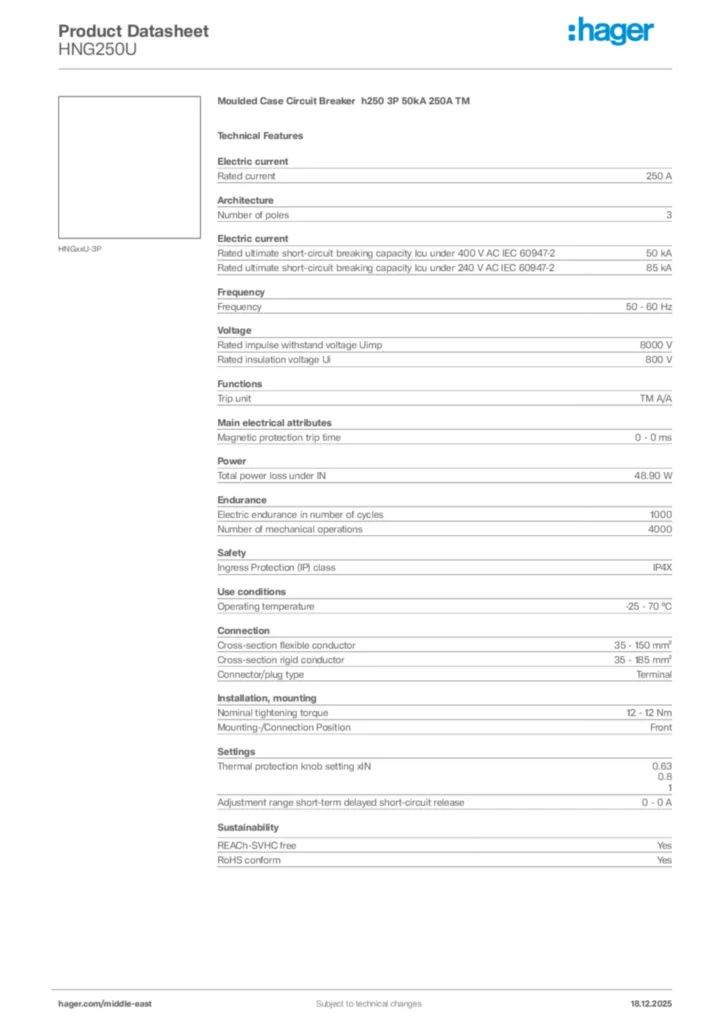

  • Product datasheet
