Moulded Case Circuit Breaker h250 3P 50kA 125A TM HNG125U

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Handle for power circuit breaker 1 products available
Under voltage coil 2 products available
Connection Functions 2 products available
Shunt release 3 products available
Auxiliaries contact block 2 products available
Auxiliaries interlocking cable 1 products available

Technical characteristics

Rated current

125 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA

Number of poles

3

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V

Trip unit

TM A/A

Magnetic protection trip time

0 - 0 ms

Total power loss under IN

29.60 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C

Cross-section flexible conductor

35 - 150 mm²
Cross-section rigid conductor

35 - 185 mm²
Connector/plug type

Terminal

Nominal tightening torque

12 - 12 Nm
Mounting-/Connection Position

Front

Thermal protection knob setting xIN

0.63, 0.8, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Downloads

Product Image HNG125U
Product datasheet

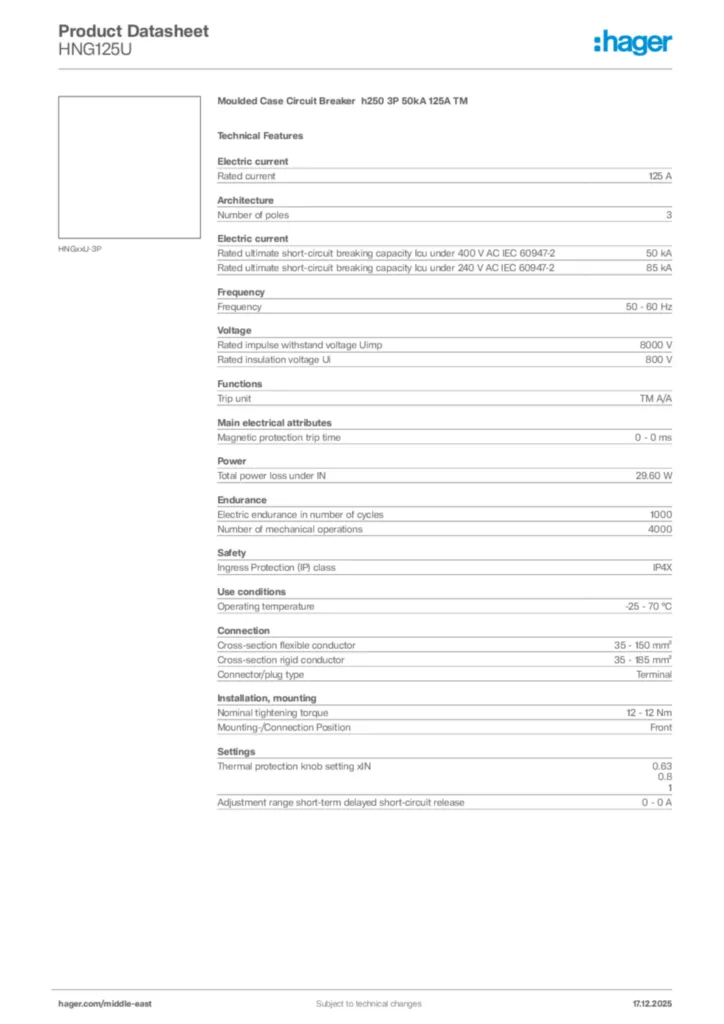

Hager Product data sheet HNG125U

Moulded Case Circuit Breaker h250 3P 50kA 125A TM

PDF
Installation manual

Installation manual International 2021-06-07

PDF

9,52 MB
