Moulded Case Circuit Breaker h250 3P 50kA 63A TM HNG063U
EAN-Nr.
3250613247164
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Handle for power circuit breaker 1 products available -
Under voltage coil 2 products available -
Connection Functions 2 products available -
Shunt release 3 products available -
Auxiliaries contact block 2 products available -
Auxiliaries interlocking cable 1 products available
Complete your system
Technical characteristics
Electric current
-
Rated current63 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
Architecture
-
Number of poles3
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
Functions
-
Trip unitTM A/A
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Power
-
Total power loss under IN18 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
-
Connector/plug typeTerminal
Installation, mounting
-
Nominal tightening torque12 - 12 Nm
-
Mounting-/Connection PositionFront
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Downloads
-
Product datasheet

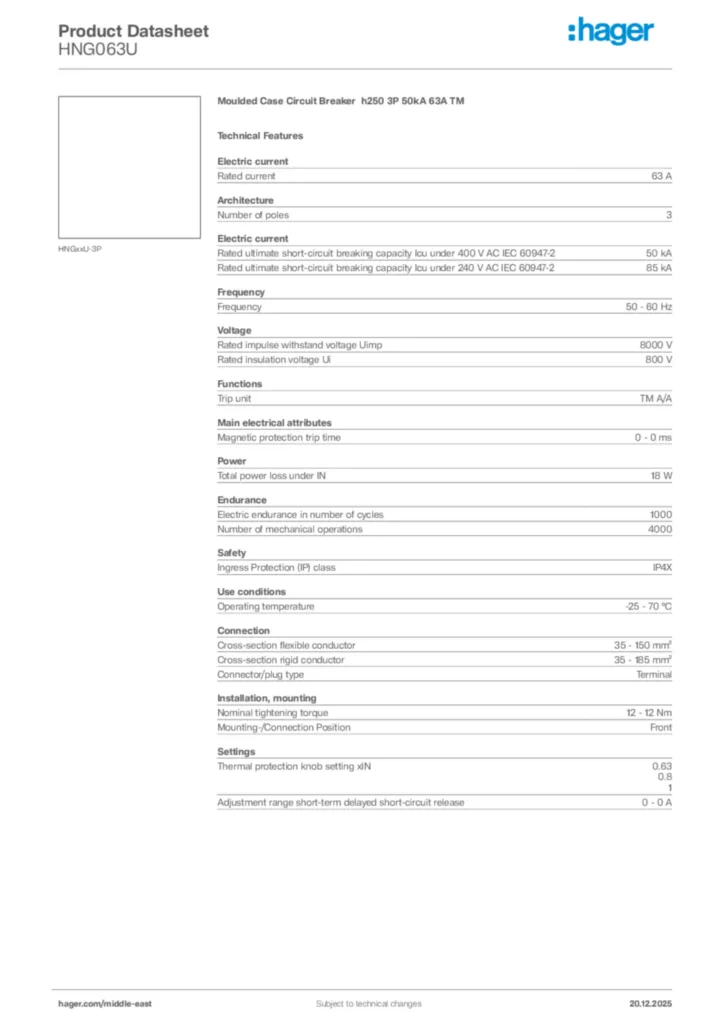

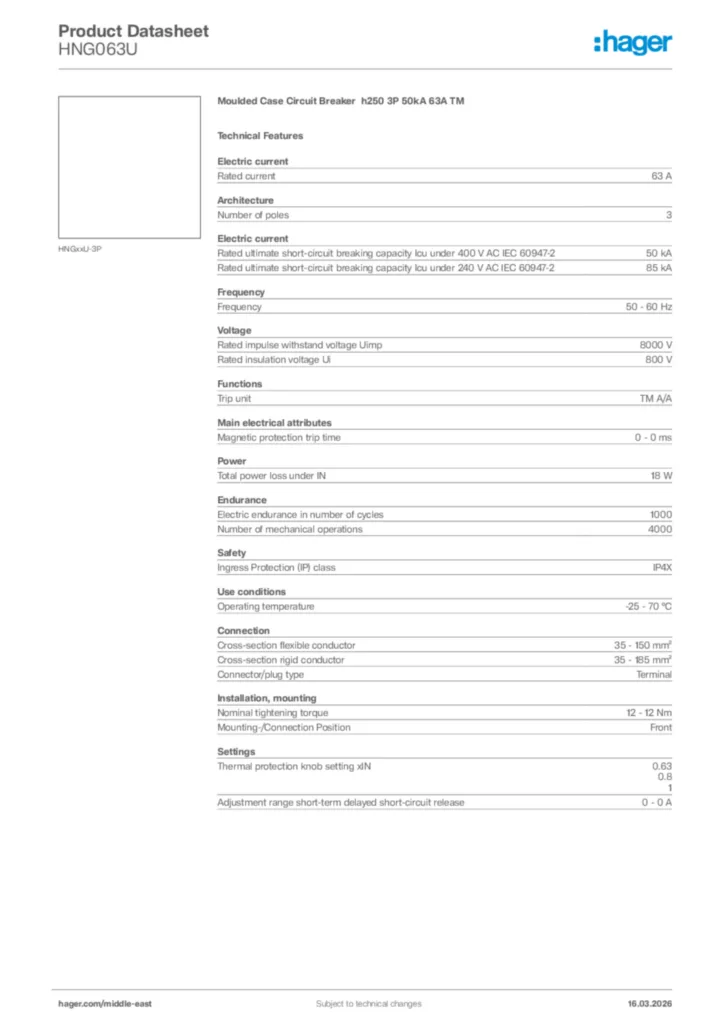

Hager Product data sheet HNG063U
Moulded Case Circuit Breaker h250 3P 50kA 63A TM
PDF -
Installation manual
Installation manual International 2021-06-07
PDF9,52 MB -
Declaration of conformity
MCCB h250
PDF360,91 kB
