Moulded Case Circuit Breaker h1000 4P 50kA 800A LSI HNE801H

EAN-Nr.
3250613349752
Packaging
1 piece

Complete your system

Optional accessories

  • See more (11)
    • Shunt release 4 products available
    • Auxiliaries interlocking cable 1 products available
    • Auxiliaries contact block 2 products available
    • Motor operator 1 products available
    • Handle for power circuit breaker 1 products available
    • Locking interlocking functions 1 products available

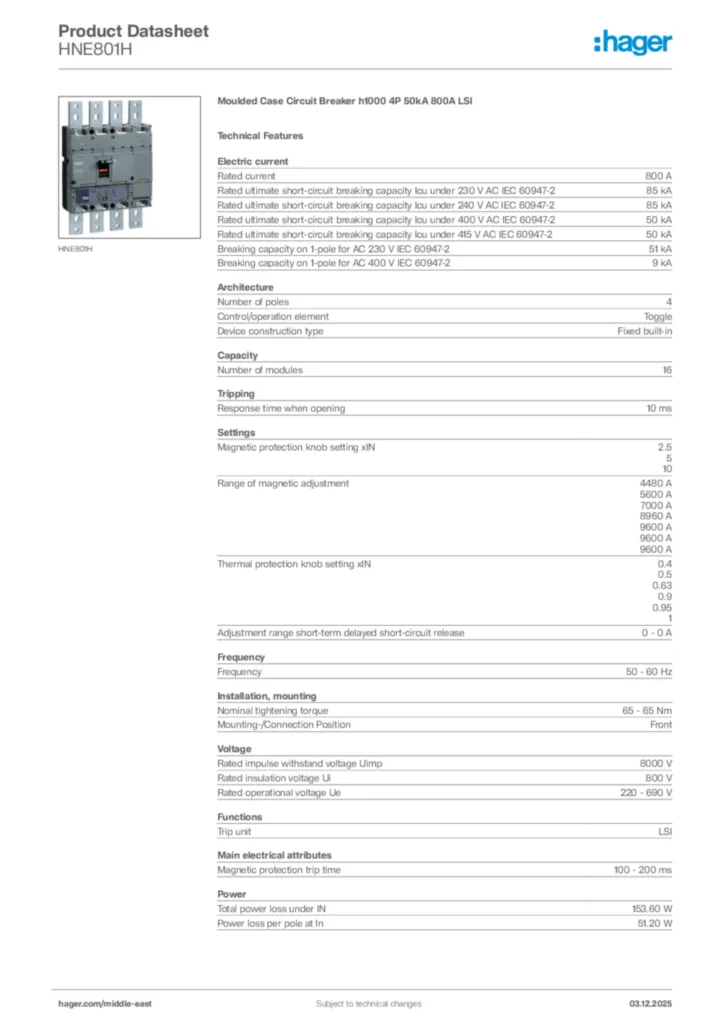

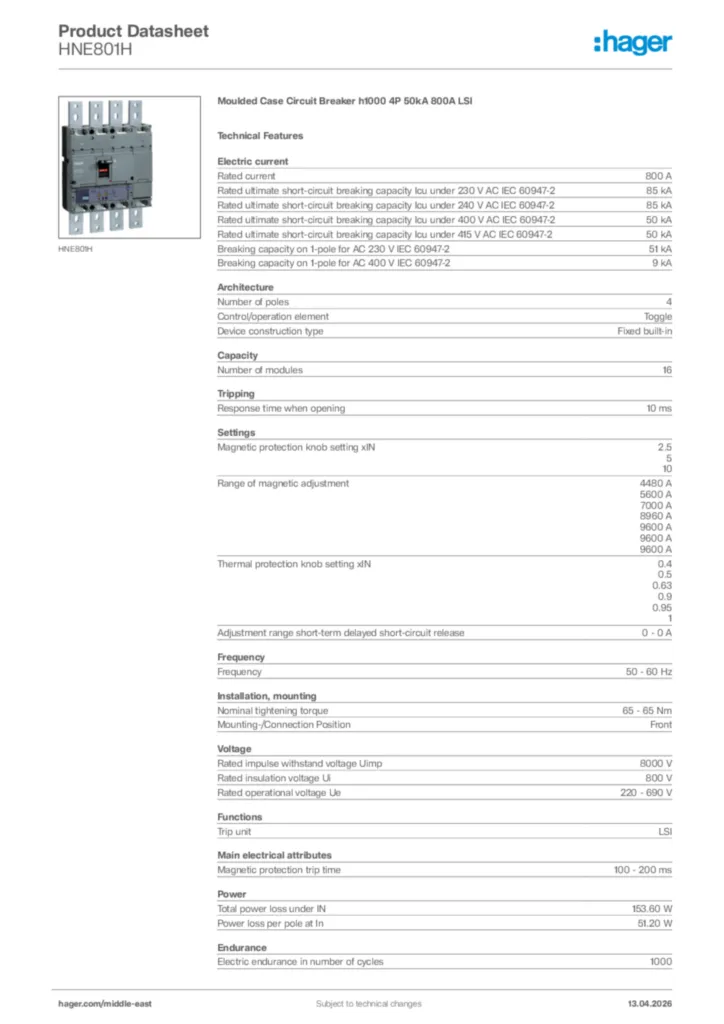

    Technical characteristics

    Electric current
    • Rated current
      800 A
    • Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2
      85 kA
    • Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2
      50 kA
    • Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2
      50 kA
    • Breaking capacity on 1-pole for AC 230 V IEC 60947-2
      51 kA
    • Breaking capacity on 1-pole for AC 400 V IEC 60947-2
      9 kA
    Architecture
    • Number of poles
      4
    • Control/operation element
      Toggle
    • Device construction type
      Fixed built-in
    Capacity
    • Number of modules
      16
    Tripping
    • Response time when opening
      10 ms
    Settings
    • Magnetic protection knob setting xIN
      2.5, 5, 10
    • Range of magnetic adjustment
      4480 A, 5600 A, 7000 A, 8960 A, 9600 A, 9600 A, 9600 A
    • Thermal protection knob setting xIN
      0.4, 0.5, 0.63, 0.9, 0.95, 1
    • Adjustment range short-term delayed short-circuit release
      0 - 0 A
    Frequency
    • Frequency
      50 - 60 Hz
    Installation, mounting
    • Nominal tightening torque
      65 - 65 Nm
    • Mounting-/Connection Position
      Front
    Voltage
    • Rated impulse withstand voltage Uimp
      8,000 V
    • Rated insulation voltage Ui
      800 V
    • Rated operational voltage Ue
      220 - 690 V
    Functions
    • Trip unit
      LSI
    Main electrical attributes
    • Magnetic protection trip time
      100 - 200 ms
    Power
    • Total power loss under IN
      153.60 W
    • Power loss per pole at In
      51.20 W
    Endurance
    • Electric endurance in number of cycles
      1,000
    • Number of mechanical operations
      4,000
    Equipment
    • Number of auxiliary contacts as change-over contact
      0
    • Number of auxiliary contacts as normally closed contact
      0
    • Number of auxiliary contacts as normally open contact
      0
    Safety
    • Ingress Protection (IP) class
      IP4X
    Use conditions
    • Operating temperature
      -25 - 70 °C
    Connection
    • Cross-section flexible conductor
      2x 240 mm²
    • Cross-section rigid conductor
      2x 240 mm²
    • Connector/plug type
      Terminal
    Controls and indicators
    • Motor drive integrated
      No
    Compatibility
    • Suitable for DIN Rail
      No
    Power supply
    • Position power supply
      Bidirectional
