Moulded Case Circuit Breaker h400 4P 50kA 400A TM HND401U

Name: HND401U
Brand: Hager
SKU: HND401U

EAN-Nr.

3250613349479

Packaging

1 piece

Accessories
Technical characteristics
Environmental value
Documentations
More products

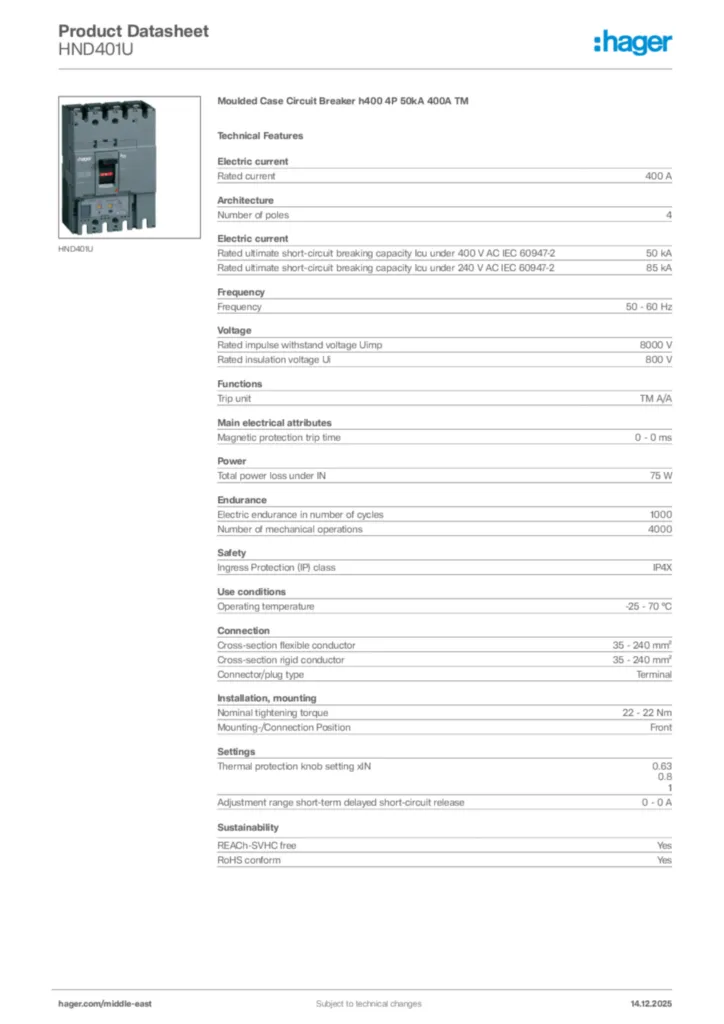

Download the sheet

Complete your system

Under voltage coil 2 products available
Shunt release 3 products available
Handle for power circuit breaker 2 products available
Auxiliaries interlocking cable 1 products available
Auxiliaries contact block 2 products available
Motor operator 1 products available

Technical characteristics

Rated current

400 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA

Number of poles

4

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V

Trip unit

TM A/A

Magnetic protection trip time

0 - 0 ms

Total power loss under IN

75 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C

Cross-section flexible conductor

35 - 240 mm²
Cross-section rigid conductor

35 - 240 mm²
Connector/plug type

Terminal

Nominal tightening torque

22 - 22 Nm
Mounting-/Connection Position

Front

Thermal protection knob setting xIN

0.63, 0.8, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
