Modular change-over switch 4x40A HIM404
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Complete your system
Optional accessories
-
Switch operating shaft 3 products available -
Door coupling handle for switchgear 1 products available -
Auxiliary contact block 1 products available
Technical characteristics
Voltage
-
Rated operational voltage Ue380 - 415 V
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Electric current
-
Rated current40 A
-
Rated short-time withstand current Icw IEC 609471.26 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC126,000 W
-
Total power loss under IN3.60 W
Architecture
-
Number of poles4
-
Control/operation elementShort rotary handle
-
Type of pole4P
Installation, mounting
-
Nominal tightening torque2 - 2.2 Nm
Dimensions
-
Height68 mm
-
Width127.5 mm
-
Depth89 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP20
Capacity
-
Number of modules8
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section flexible conductor1.5 - 16 mm²
-
Cross-section rigid conductor1.5 - 16 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

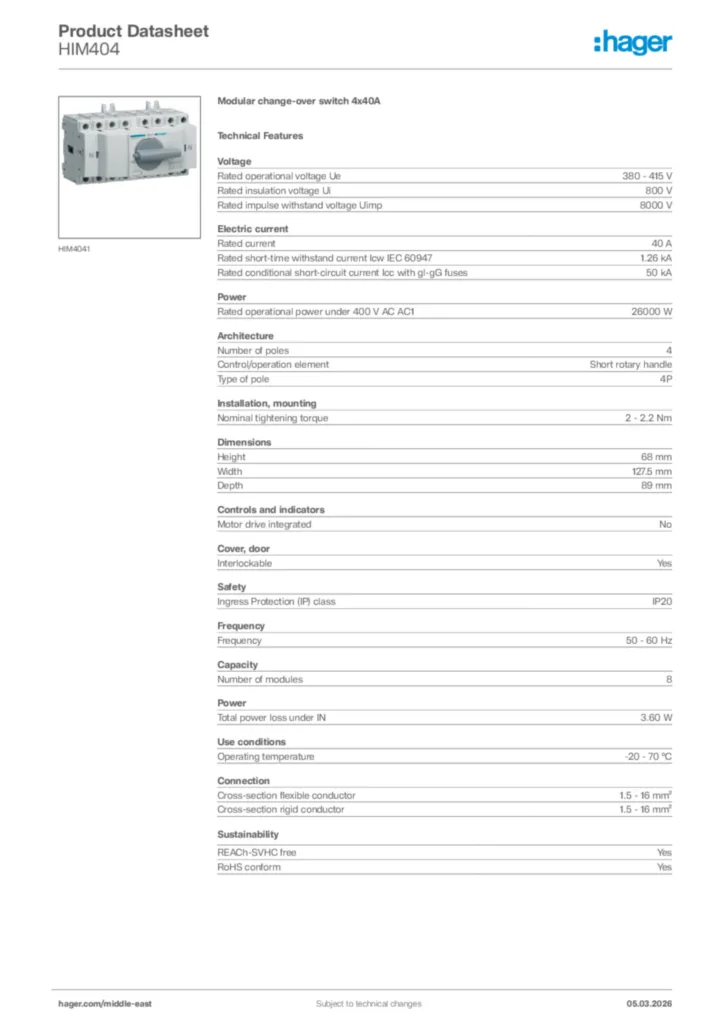

Hager Product data sheet HIM404
