Change-over switch 4P 250A HI454
EAN-Nr.
3250613190033
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door coupling handle for switchgear 1 products available -
Switch operating shaft 2 products available
Technical characteristics
Voltage
-
Rated insulation voltage Ui1,000 V
-
Rated impulse withstand voltage Uimp12,000 V
Electric current
-
Rated current250 A
-
Rated short-time withstand current Icw IEC 6094715 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC1164,000 W
-
Total power loss under IN23.60 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Dimensions
-
Height160 mm
-
Width312 mm
-
Depth218 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Capacity
-
Number of modules10
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section rigid conductor95 - 150 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

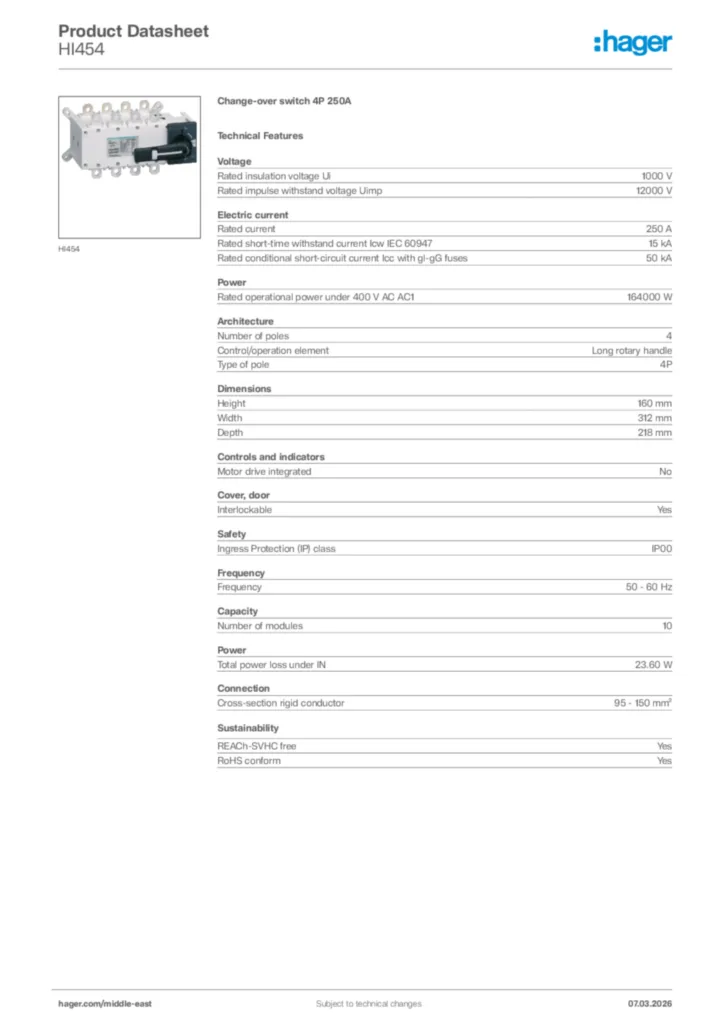

Hager Product data sheet HI454
