h3 MCCB h630 3x400A Plug In 70kA HED400G

EAN-Nr.

3250613120825

Packaging

1 piece

Technical characteristics
Documentations
More products

Download the sheet

Technical characteristics

Rated current

400 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

70 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

100 kA

Number of poles

3

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V

Trip unit

LSI

Magnetic protection trip time

100 - 200 ms

Total power loss under IN

86.40 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C

Cross-section flexible conductor

35 - 240 mm²
Cross-section rigid conductor

35 - 240 mm²
Connector/plug type

Terminal

Nominal tightening torque

22 - 22 Nm
Mounting-/Connection Position

Front

Thermal protection knob setting xIN

0.4, 0.5, 0.63, 0.9, 0.95, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Downloads

Product datasheet

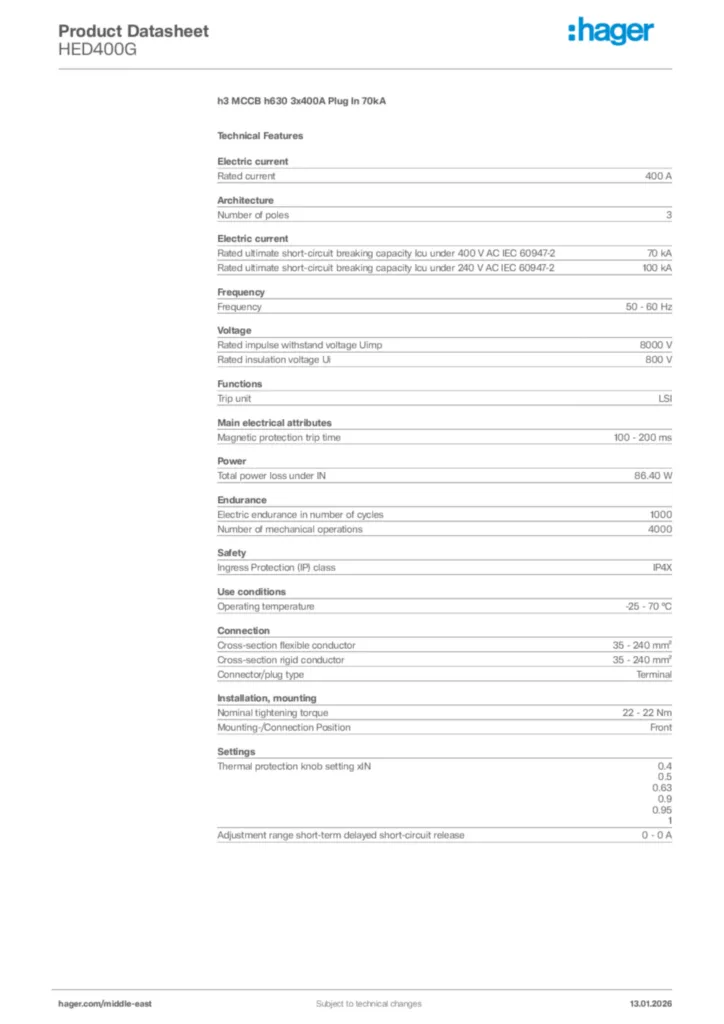

Hager Product data sheet HED400G
