Switch h1600 4P 1250A HCF981H
EAN-Nr.
3250613363291
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Shunt release 1 products available -
Auxiliaries contact block 2 products available -
Handle for power circuit breaker 1 products available
Technical characteristics
Electric current
-
Rated current1,250 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor3x 240 mm²
-
Cross-section flexible conductor3x 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In62.50 W
-
Total power loss under IN187.50 W
-
Rated operational power under 400 V AC AC1822,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-

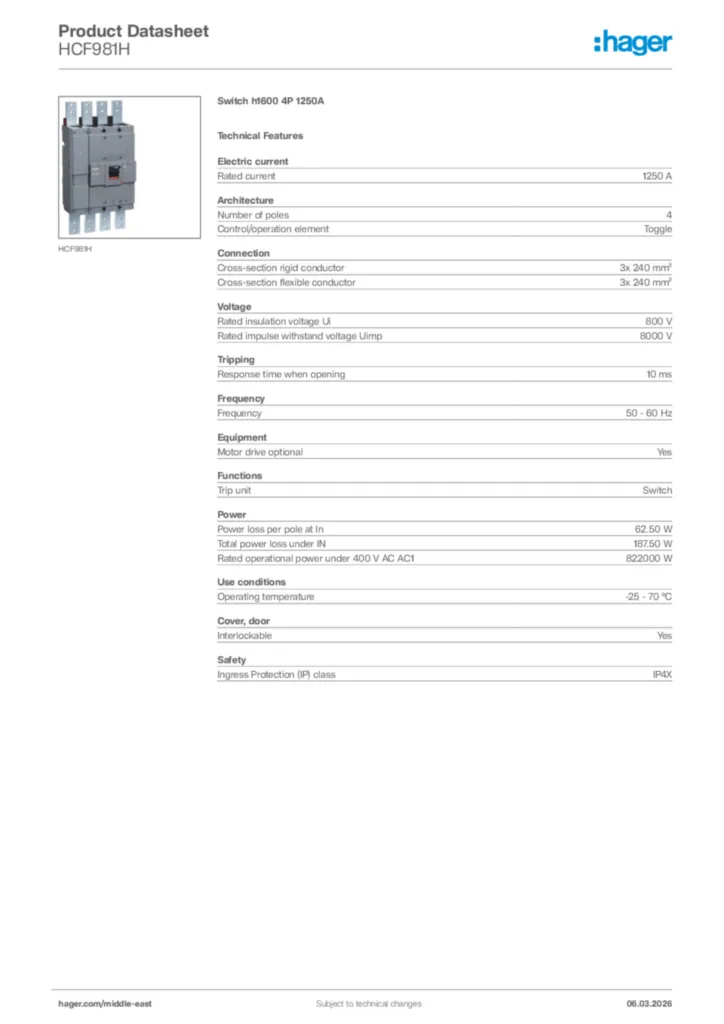

Product datasheet
Hager Product data sheet HCF981H
Switch h1600 4P 1250A
PDF -
Installation manual
Installation manual International 2021-06-07
PDF3,62 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-17
PDF298,77 kB
Declaration
Declaration of conformity International 2022-06-21
PDF284,53 kB
