Load break switch 3P 20A HAB302

Name: HAB302
Brand: Hager
SKU: HAB302

EAN-Nr.

3250613140236

Packaging

1 piece

Accessories
Technical characteristics
Environmental value
Documentations

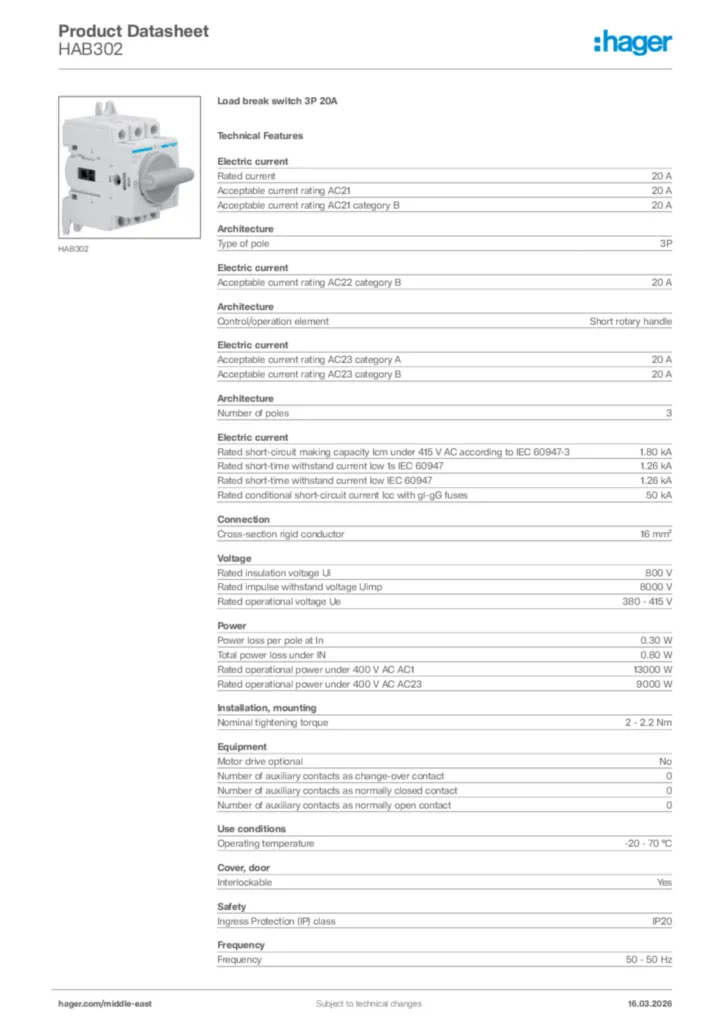

Download the sheet

Complete your system

Terminal cover 1 products available
Switch operating shaft 3 products available
Door coupling handle for switchgear 1 products available
Auxiliary contact block 1 products available

Technical characteristics

Rated current

20 A
Acceptable current rating AC21

20 A
Acceptable current rating AC21 category B

20 A
Acceptable current rating AC22 category B

20 A
Acceptable current rating AC23 category A

20 A
Acceptable current rating AC23 category B

20 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

1.80 kA
Rated short-time withstand current Icw 1s IEC 60947

1.26 kA
Rated short-time withstand current Icw IEC 60947

1.26 kA

Type of pole

3P
Control/operation element

Short rotary handle
Number of poles

3

Cross-section rigid conductor

16 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8,000 V
Rated operational voltage Ue

380 - 415 V

Power loss per pole at In

0.30 W
Total power loss under IN

0.80 W
Rated operational power under 400 V AC AC1

13,000 W
Rated operational power under 400 V AC AC23

9,000 W

Nominal tightening torque

2 - 2.2 Nm

Motor drive optional

No
Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Operating temperature

-20 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP20

Frequency

50 - 50 Hz

Type of connection

Screw terminal

Is reversing switch

No
Version as emergency stop installation

No
Version as main switch

Yes
Version as maintenance/service switch

Yes
Version as safety switch

Yes
Version as switch disconnector compact

Yes

Number of modules

2.57

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
