Load break switch 4P 800A HA460

Accessories
Technical characteristics
Environmental value
Documentations
More products

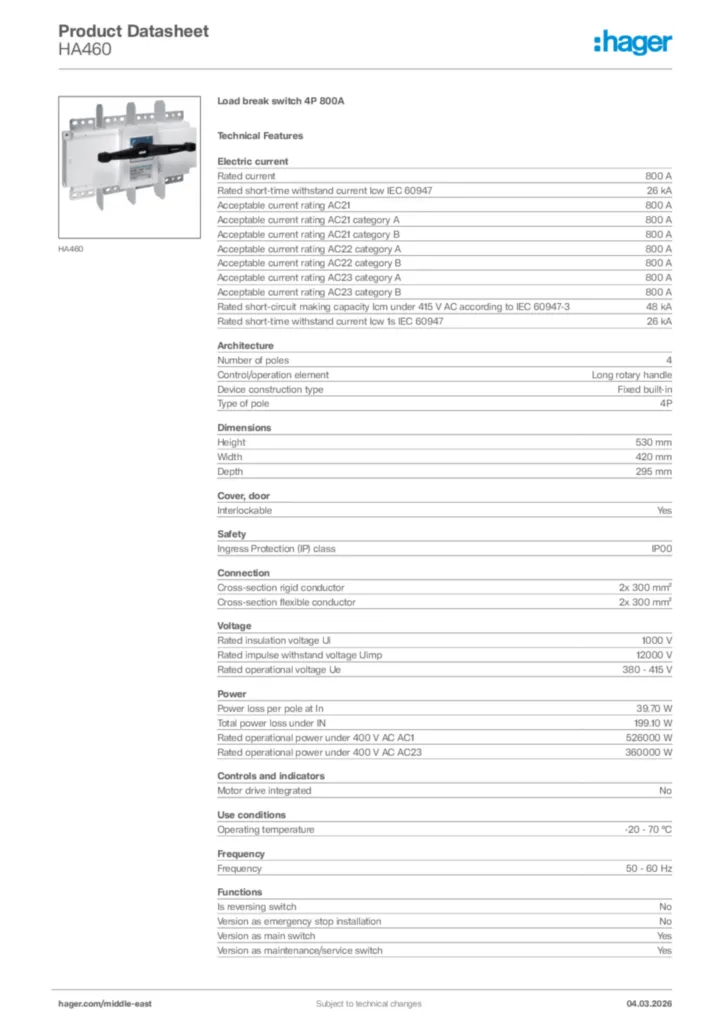

Download the sheet

Complete your system

Door coupling handle for switchgear 1 products available

Technical characteristics

Rated current

800 A
Rated short-time withstand current Icw IEC 60947

26 kA
Acceptable current rating AC21

800 A
Acceptable current rating AC21 category A

800 A
Acceptable current rating AC21 category B

800 A
Acceptable current rating AC22 category A

800 A
Acceptable current rating AC22 category B

800 A
Acceptable current rating AC23 category A

800 A
Acceptable current rating AC23 category B

800 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

48 kA
Rated short-time withstand current Icw 1s IEC 60947

26 kA

Number of poles

4
Control/operation element

Long rotary handle
Device construction type

Fixed built-in
Type of pole

4P

Height

530 mm
Width

420 mm
Depth

295 mm

Interlockable

Yes

Ingress Protection (IP) class

IP00

Cross-section rigid conductor

2x 300 mm²
Cross-section flexible conductor

2x 300 mm²

Rated insulation voltage Ui

1,000 V
Rated impulse withstand voltage Uimp

12,000 V
Rated operational voltage Ue

380 - 415 V

Power loss per pole at In

39.70 W
Total power loss under IN

199.10 W
Rated operational power under 400 V AC AC1

526,000 W
Rated operational power under 400 V AC AC23

360,000 W

Motor drive integrated

No

Operating temperature

-20 - 70 °C

Frequency

50 - 60 Hz

Is reversing switch

No
Version as emergency stop installation

No
Version as main switch

Yes
Version as maintenance/service switch

Yes
Version as safety switch

Yes
Version as switch disconnector compact

Yes

Motor drive optional

No
Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Nominal tightening torque

40 - 45 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
