device casing for 4 Rastec-devices for supply-units Q12/R12/R10 center GTVR400
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical characteristics
Dimensions
-
Depth53 mm
-
Width75 mm
-
Length225 mm
Equipment
-
Number of built-in devices4
Installation, mounting
-
Mounting type installation unitSnap-in mounting
Connection
-
Number of conduit inlets4
-
Number of strain relief4
Materials
-
MaterialPC-ABS
-
ColourDeep black
-
RAL code9005
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

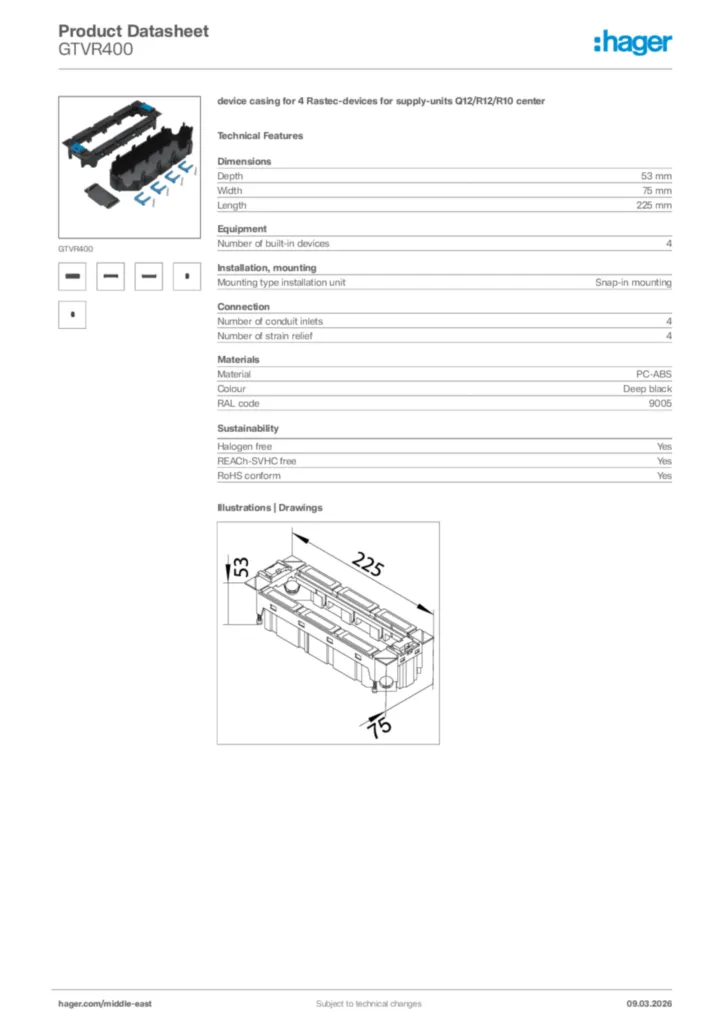

Hager Product data sheet GTVR400
device casing for 4 Rastec-devices for supply-units Q12/R12/R10 center
PDF -
Instruction manual
Instruction manual International 2016-05-10
PDF2,20 MB
Instruction manual en-GB, de-DE 2025-09-24
PDF5,39 MB -
DXF files
DXF files International 2024-07-16
DXF27,33 kB -
STEP files
STEP files International 2024-07-16
STP409,53 kB -
With variables
Product Drawing International 2024-02-27
PDF28,90 kB -
Handbook
Floor installation systems - Handbook: Basic knowledge
Floor installation systems - Handbook: Basic knowledge (EN, 04-2024)
PDF99,70 MB
Floor installation systems - Handbook: Installation units
Floor installation systems - Handbook: Installation units (EN, 12-2024)
PDF21,12 MB -
Declaration of conformity
EC declaration of conformity VQ_VR_VE
Declaration of conformity International 2017-11-20
PDF120,65 kB
EU-Declaration EKQ_EKR_EKSQ_EKSR T030A DE_EN 26072019
Declaration of conformity International 2019-08-23
PDF42,78 kB
EU-Declaration VANR T034A DE_EN 26072019
Declaration of conformity International 2019-08-23
PDF47,96 kB
EU-Declaration VQ_VR_VE_VDQ_VDR_VDE T035A DE_EN 26072019
Declaration of conformity International 2019-08-23
PDF48,47 kB
