Mini-enclosure, gamma, 4 module, protect. class IP30, 1xPE GD104E
EAN-Nr.
3250612843213
Packaging
5 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 1 products available -
Push-in terminal 1 products available
Complete your system
Technical characteristics
Voltage
-
Nominal voltage230 - 230 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current40 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules4
Functions
-
Has protection main switchNo
-
With conduit inletsYes
Dimensions
-
Height180 mm
-
Width110 mm
-
Depth82 mm
-
Number of width units4
Cover, door
-
Number of locks0
-
Door/cover is transparentNo
Connectivity
-
Mounting typeScrew mounting
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
-
Glow wire test750 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

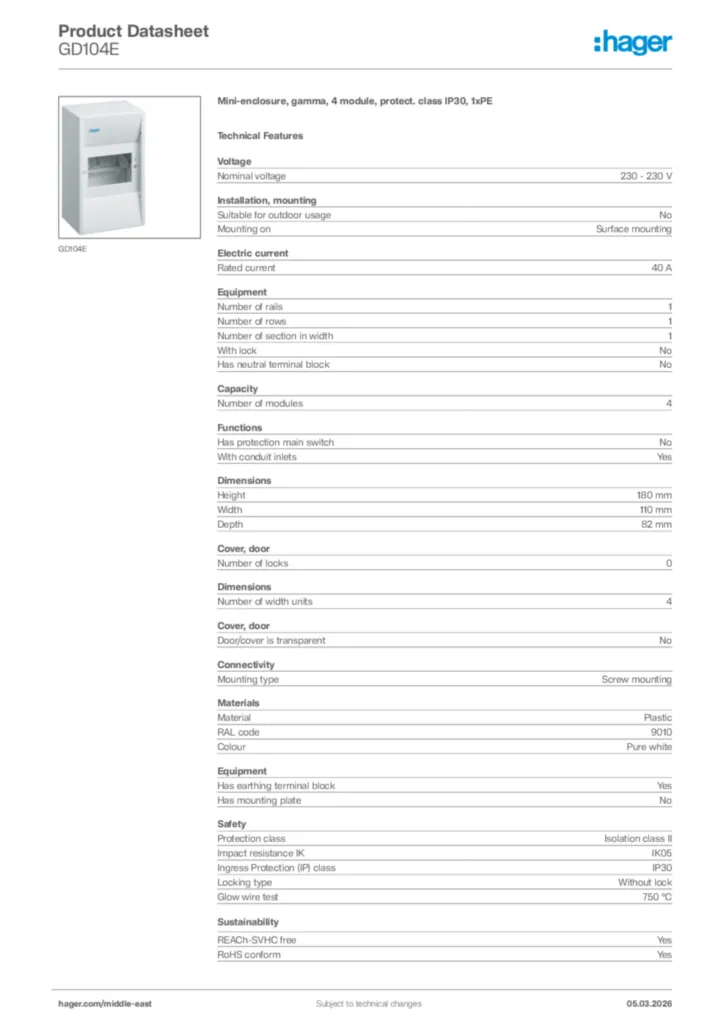

Product datasheet
