    EAN-Nr.
    3250612736928
    Packaging
    1 piece
    • Univers

    FWB encl.,univers,7-rows 336 modules cl.II IP44 w.plain door, 1100x1050x161mm,QC FWB74S

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    FWB encl.,univers,7-rows 336 modules cl.II IP44 w.plain door, 1100x1050x161mm,QC

    FWB74S

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Connection
    • Number of conduit inlets
      16
    Installation, mounting
    • Suitable for outdoor usage
      No
    • Mounting on
      Surface mounting
    Electric current
    • Rated current
      125 A
    Equipment
    • Number of rails
      28
    • Number of rows
      7
    • Number of section in width
      4
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capacity
    • Number of modules
      336
    Functions
    • Has protection main switch
      No
    • With conduit inlets
      Yes
    Dimensions
    • Height
      1,100 mm
    • Width
      1,050 mm
    • Depth
      165 mm
    • Built-in height
      1,100 mm
    • Built-in width
      1,050 mm
    • Built-in depth
      161 mm
    • Number of width units
      48
    Cover, door
    • Number of cabinet doors
      2
    • Number of locks
      1
    • Type of handle
      Hinged pattern handle
    • Door/cover is transparent
      No
    Connectivity
    • Mounting type
      Surface mounting
    Materials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    • Ultraviolet-resistant
      No
    Safety
    • Protection class
      Isolation class II
    • Impact resistance IK
      IK09
    • Ingress Protection (IP) class
      IP44
    • Locking type
      Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    REACH declaration FWB74S
    PDF
    Hager RoHS report FWB74S
    PDF

    Downloads

    • Image FWB74S | Hager

      Product Image FWB74S

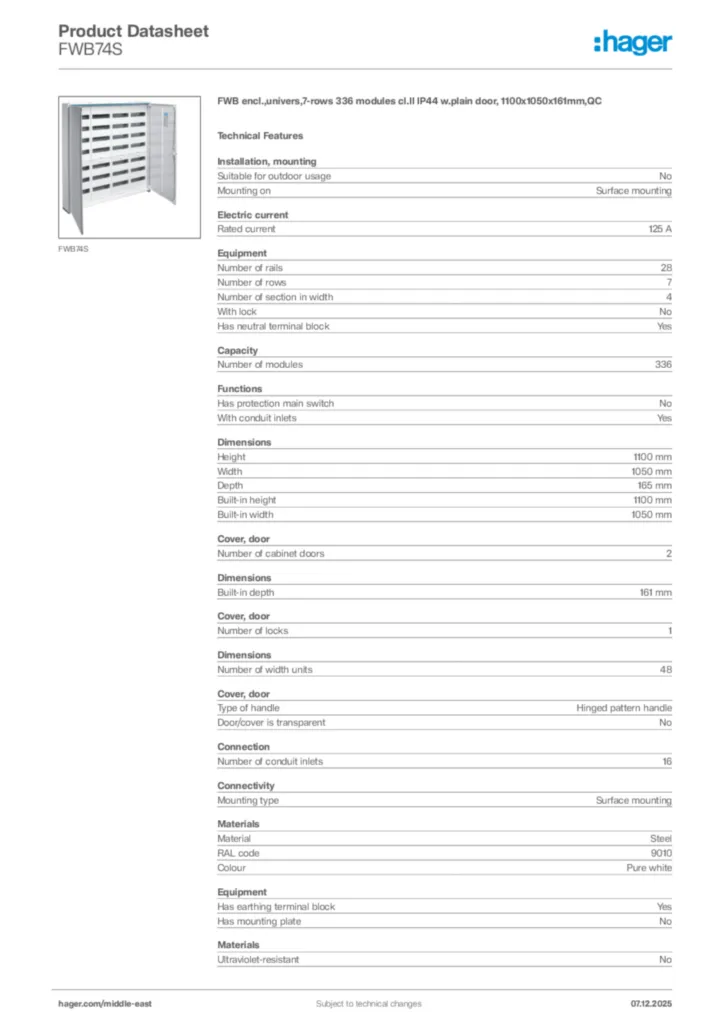

    • Product datasheet

      Image Hager Product data sheet FWB74S | Hager

      Hager Product data sheet FWB74S

      FWB encl.,univers,7-rows 336 modules cl.II IP44 w.plain door, 1100x1050x161mm,QC

      PDF

    • Instruction manual

      Image Instruction manual International 2015-05-05 | Hager

      Instruction manual International 2015-05-05

      PDF
      3,08 MB
      Image Instruction manual International 2015-05-08 | Hager

      Instruction manual International 2015-05-08

      PDF
      673,51 kB

    • Installation manual

      Image Montageanleitung Klemmenträger | Hager

      Montageanleitung Klemmenträger

      Installation manual International 2009-11-26

      PDF
      608,90 kB

    • Handbook

      Image Handbook en-GB 2023-03-30 | Hager

      Handbook en-GB 2023-03-30

      PDF
      23,14 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
