EAN-Nr.

3250612469987

Packaging

1 piece

Delay off Timer EZN002

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Frequency

50 - 60 Hz

Power consumption during operation

15 VA
Power loss at full load

2 W
230 V incandescent and halogen lamp

450 W

Operating temperature

-20 - 50 °C
Storage/transport temperature

-40 - 70 °C

Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1.5 - 10 mm²
Number of contacts

1
Type of contacts

1x changeover

Number of modules

1

Switch mode

Change-over contact, usable as NC or NO
Function

Functions: On delay, off delay, single shot leading edge/single shot trailing edge, pulse shaping, flashing symmetrically, contact open/closed
Type of connection

With screw terminals
Installation mode

For mounting on DIN rail

Height

85 mm
Width

17.50 mm
Depth

58 mm

Acceptable current rating AC1

8 A

Number of NC contacts

0
Number of NO contacts

0
Switch off delay

No
Switch on delay

Yes

Time delay

0.1 S - 10 h

Type voltage supply

AC/DC

Downloads

Product Image EZN002
Product datasheet

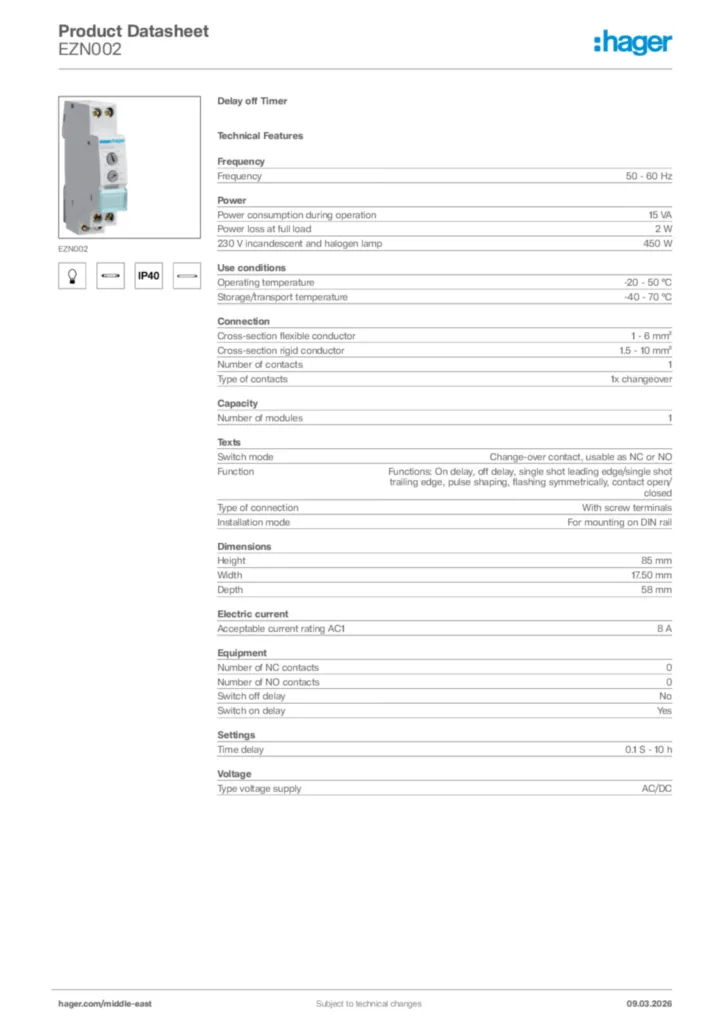

Hager Product data sheet EZN002
