EAN-Nr.

3250612237944

Packaging

1 piece

Industrial contactor 85A-AC3 / coil 380V AC 50-60Hz EW090_D

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Type of pole

3P

Rated operational voltage Ue

690 - 690 V
Command voltage AC

380 - 380 V
Command voltage DC

0 - 0 V
Rated insulation voltage Ui

1,000 V

Rated operational current Ie under 3P 220 - 230 V AC3 according to IEC 60947 - 4

85 A
Acceptable current rating AC3

85 A
Rated operational current Ie under 3P 380 - 400 V AC AC3 according to IEC 60947 - 4

85 A

Depth

123 mm

Frequency

50 - 60 Hz

Rated operational power for 3P under 220 - 230 V AC AC3 according to IEC 60947 - 4

25 kW

Number of mechanical operations

5,000,000
Electric endurance in number of cycles

500,000

Cross-section of input and output with screws, for flexible conductors

25 - 50 mm²
Cross-section of input and output with screws, for massive conductors

25 - 50 mm²

Number of auxiliary contacts as normally open contact

2
Number of auxiliary contacts as normally closed contact

2
Number of NO contacts

3
Number of NC contacts

0

Operating temperature

-20 - 55 °C
Storage/transport temperature

-40 - 80 °C

Downloads

Product datasheet

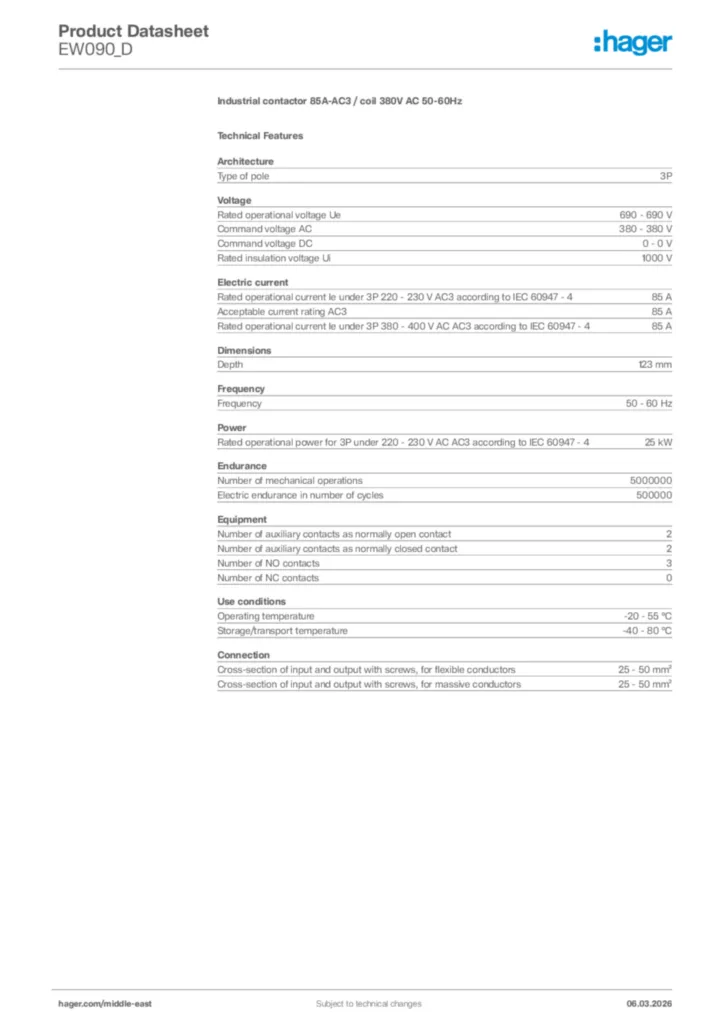

Hager Product data sheet EW090_D

Industrial contactor 85A-AC3 / coil 380V AC 50-60Hz

PDF
