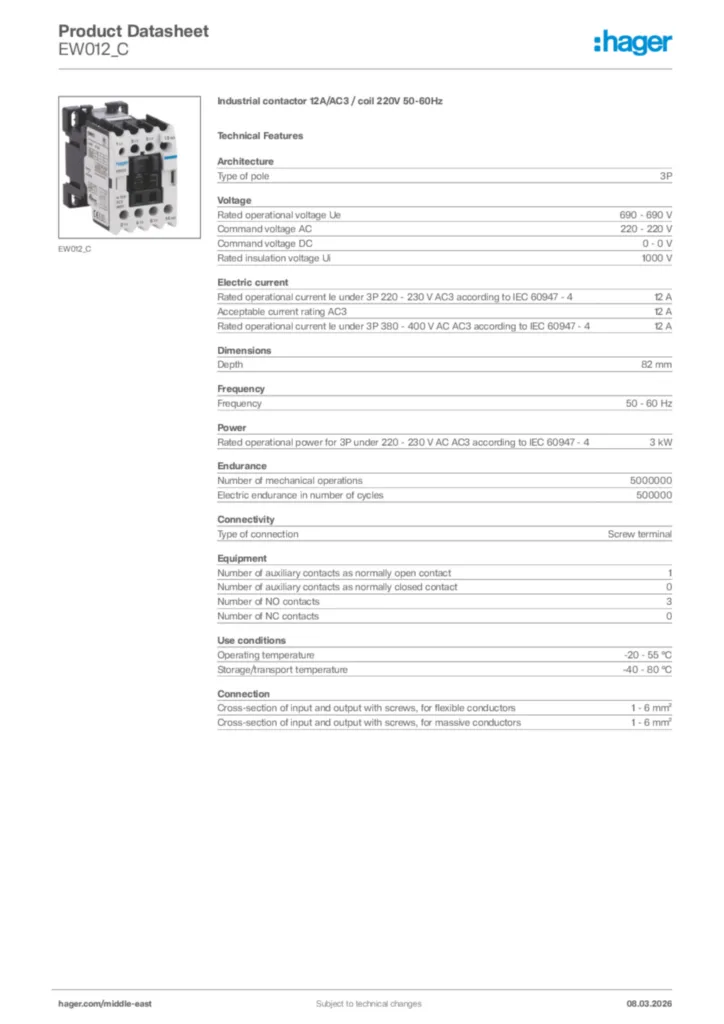

    Industrial contactor 12A/AC3 / coil 220V 50-60Hz EW012_C

    Phase out product: please contact your electrical wholesaler for availability

    Complete your system

    Optional accessories

    • Auxiliary device for distribution board devices 1 products available
    • Auxil­iary device for distri­bu­tion board devices 1 products available

    Technical characteristics

    Architecture
    • Type of pole
      3P
    Voltage
    • Rated operational voltage Ue
      690 - 690 V
    • Command voltage AC
      220 - 220 V
    • Command voltage DC
      0 - 0 V
    • Rated insulation voltage Ui
      1,000 V
    Electric current
    • Rated operational current Ie under 3P 220 - 230 V AC3 according to IEC 60947 - 4
      12 A
    • Acceptable current rating AC3
      12 A
    • Rated operational current Ie under 3P 380 - 400 V AC AC3 according to IEC 60947 - 4
      12 A
    Dimensions
    • Depth
      82 mm
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Rated operational power for 3P under 220 - 230 V AC AC3 according to IEC 60947 - 4
      3 kW
    Endurance
    • Number of mechanical operations
      5,000,000
    • Electric endurance in number of cycles
      500,000
    Connectivity
    • Type of connection
      Screw terminal
    Connection
    • Cross-section of input and output with screws, for flexible conductors
      1 - 6 mm²
    • Cross-section of input and output with screws, for massive conductors
      1 - 6 mm²
    Equipment
    • Number of auxiliary contacts as normally open contact
      1
    • Number of auxiliary contacts as normally closed contact
      0
    • Number of NO contacts
      3
    • Number of NC contacts
      0
    Use conditions
    • Operating temperature
      -20 - 55 °C
    • Storage/transport temperature
      -40 - 80 °C
