Humfree Contactor 63A, 4NO, 230V~50/60Hz ESC463S
EAN-Nr.
3250612400430
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Connection
-
Type of contacts4NO
-
Number of contacts4
-
Cross-section flexible conductor1.5 - 16 mm²
-
Cross-section rigid conductor1.5 - 25 mm²
Electric current
-
Rated current63 A
-
Acceptable current rating AC332 A
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated insulation voltage Ui440 V
-
Rated operational voltage Ue400 - 400 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100,000
-
Electric endurance in number of cycles30,000
Texts
-
Safety hintHumfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
Power
-
Total power loss under IN24.50 W
-
Inrush power absorbed5.20 VA
Dimensions
-
Height85 mm
-
Width54 mm
-
Depth60 mm
Equipment
-
Number of NO contacts4
-
Number of NC contacts0
-
With switch for manual switchNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

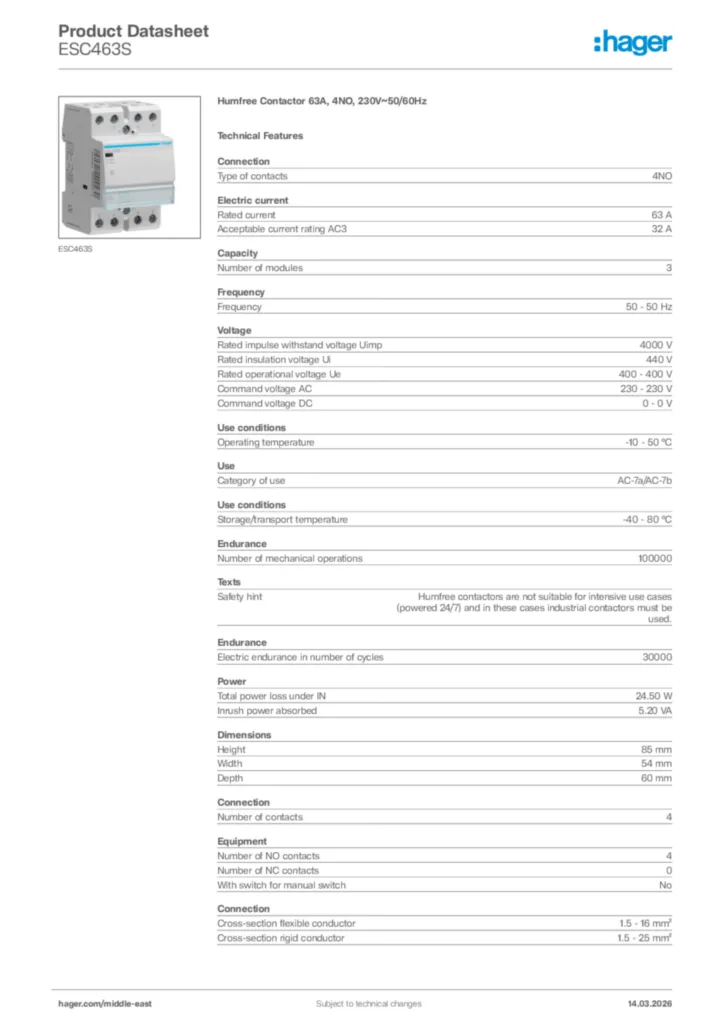

Hager Product data sheet ESC463S
