Humfree Contactor 25A, 3NO+1NC, 230V~50/60Hz ESC428S

EAN-Nr.

3250612400225

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

ESC425S

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available

Technical characteristics

Type of contacts

3NO+1NC
Number of contacts

4
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current

25 A

Number of modules

2

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

4,000 V
Rated insulation voltage Ui

440 V
Rated operational voltage Ue

400 - 400 V
Command voltage AC

230 - 230 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100,000
Electric endurance in number of cycles

30,000

Safety hint

Humfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.

Total power loss under IN

7.40 W
Inrush power absorbed

2.90 VA

Height

83 mm
Width

35.75 mm
Depth

60 mm

Number of NO contacts

3
Number of NC contacts

1
With switch for manual switch

No

Nominal tightening torque

1.20 - 1.20 Nm

Downloads

Product Image ESC428S
Product datasheet

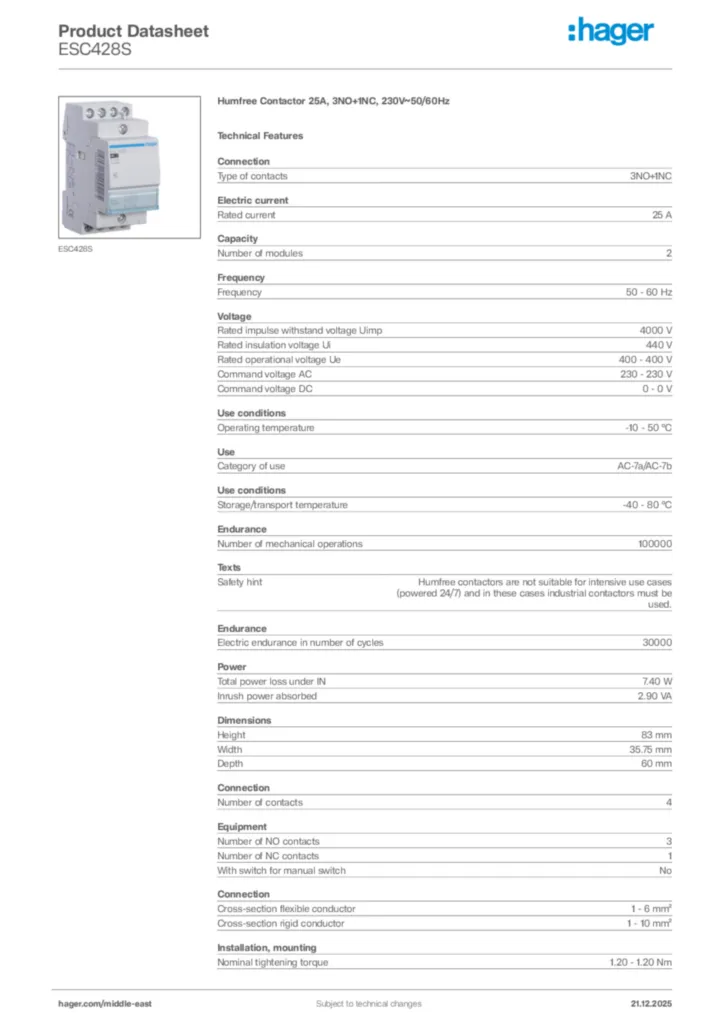

Hager Product data sheet ESC428S
