Contactor 40A, 2NO, 230V • ESC240 | Hager
Location Middle-East

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN-Nr.
    3250612401055
    Packaging
    1 piece

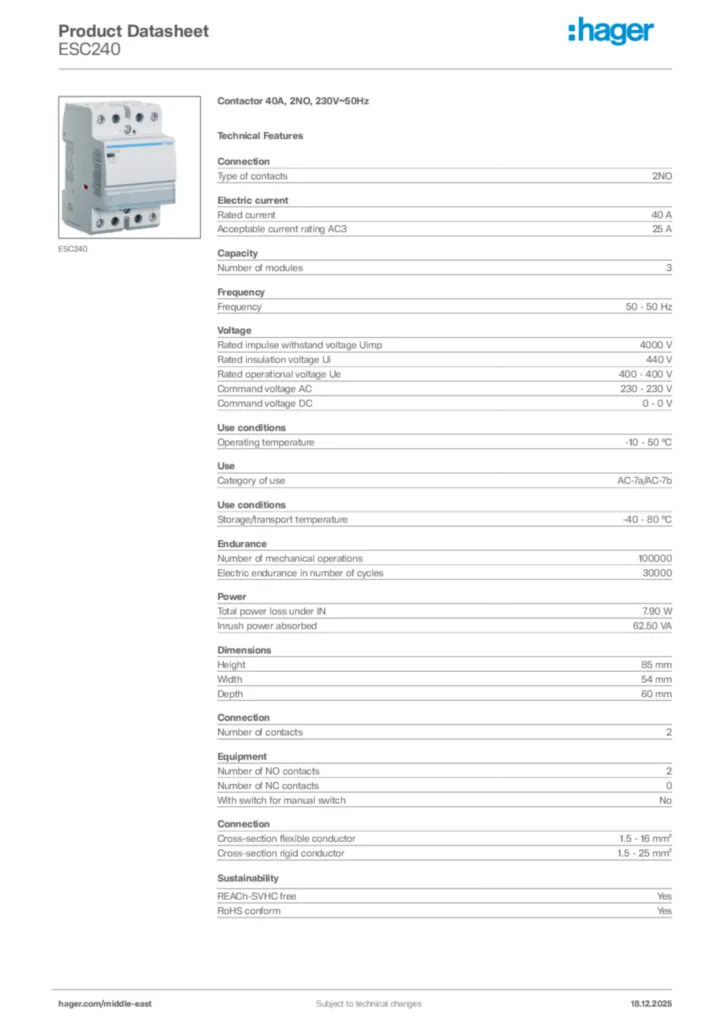

    Contactor 40A, 2NO, 230V~50Hz ESC240

    Complete your system

    Optional accessories

    • Mechanic accessories for low-voltage components 1 products available

    Technical characteristics

    Connection
    • Type of contacts
      2NO
    • Number of contacts
      2
    • Cross-section flexible conductor
      1.5 - 16 mm²
    • Cross-section rigid conductor
      1.5 - 25 mm²
    Electric current
    • Rated current
      40 A
    • Acceptable current rating AC3
      25 A
    Capacity
    • Number of modules
      3
    Frequency
    • Frequency
      50 - 50 Hz
    Voltage
    • Rated impulse withstand voltage Uimp
      4,000 V
    • Rated insulation voltage Ui
      440 V
    • Rated operational voltage Ue
      400 - 400 V
    • Command voltage AC
      230 - 230 V
    • Command voltage DC
      0 - 0 V
    Use conditions
    • Operating temperature
      -10 - 50 °C
    • Storage/transport temperature
      -40 - 80 °C
    Use
    • Category of use
      AC-7a/AC-7b
    Endurance
    • Number of mechanical operations
      100,000
    • Electric endurance in number of cycles
      30,000
    Power
    • Total power loss under IN
      7.90 W
    • Inrush power absorbed
      62.50 VA
    Dimensions
    • Height
      85 mm
    • Width
      54 mm
    • Depth
      60 mm
    Equipment
    • Number of NO contacts
      2
    • Number of NC contacts
      0
    • With switch for manual switch
      No
    Architecture
    • Number of poles
      2

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Contactor 25A, 2NO, 230V (English)
    PDF
    3,90 MB
    REACH declaration ESC240
    PDF
    RoHS report ESC240
    PDF
