    EAN-Nr.
    3250612401895
    Packaging
    1 piece

    Auxiliary contact 6A, 1NO+1NC ESC080

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Auxiliary contact 6A, 1NO+1NC

    ESC080

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Electric current
    • Rated current
      6 A
    Voltage
    • Rated insulation voltage Ui
      240 V
    Capacity
    • Number of modules
      0.50
    Use conditions
    • Operating temperature
      -10 - 50 °C
    • Storage/transport temperature
      -40 - 80 °C
    Connectivity
    • Type of connection
      Screw terminal
    Connection
    • Cross-section flexible conductor
      1 - 6 mm²
    • Cross-section rigid conductor
      1 - 6 mm²
    • Type of contacts
      1NC+1NO
    Power
    • Total power loss under IN
      0.10 W
    Dimensions
    • Height
      83 mm
    • Width
      11 mm
    • Depth
      60 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration ESC080
    PDF
    Hager RoHS report ESC080
    PDF

    Downloads

    • Image ESC080 | Hager

      Product Image ESC080

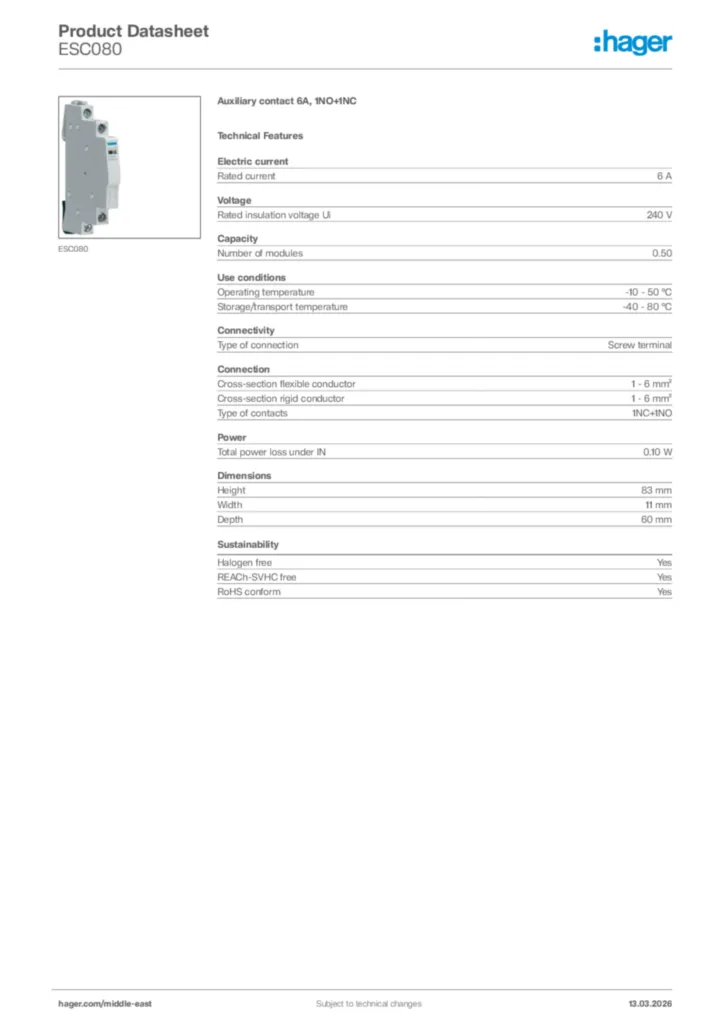

    • Product datasheet

      Image Hager Product data sheet ESC080 | Hager

      Hager Product data sheet ESC080

      Auxiliary contact 6A, 1NO+1NC

      PDF

    • Installation manual

      Image Installation manual International 2021-10-13 | Hager

      Installation manual International 2021-10-13

      Installation manual International 2022-07-27

      PDF
      1,08 MB

    • Product data sheet

      Image UK_MD_TDS_Contactors.pdf | Hager

      UK_MD_TDS_Contactors.pdf

      Technical data sheet including characteristics for Contactors and Override Contactors.

      PDF
      197,47 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-12-01

      PDF
      283,97 kB
