Latching relay 1NO 230V EPN510
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 2 products available
Complete your system
Technical characteristics
Electric current
-
Rated current16 A
-
Quiescent current6 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules1
Connection
-
Type of contacts1NO
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Number of contacts1
Voltage
-
Command voltage AC230 - 230 V
-
Command voltage DC110 - 110 V
-
Command voltage 2110 - 110 V
-
Command voltage 1230 - 230 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Power
-
Total power loss under IN1.20 W
-
Inrush power absorbed25 VA
Dimensions
-
Height83 mm
-
Width17.50 mm
-
Depth63 mm
Lighting
-
Max. load fluorescent lamp800 VA
-
Max. load fluorescent lamp parallel compensated900 VA
Equipment
-
Number of NO contacts1
-
Number of NC contacts0
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

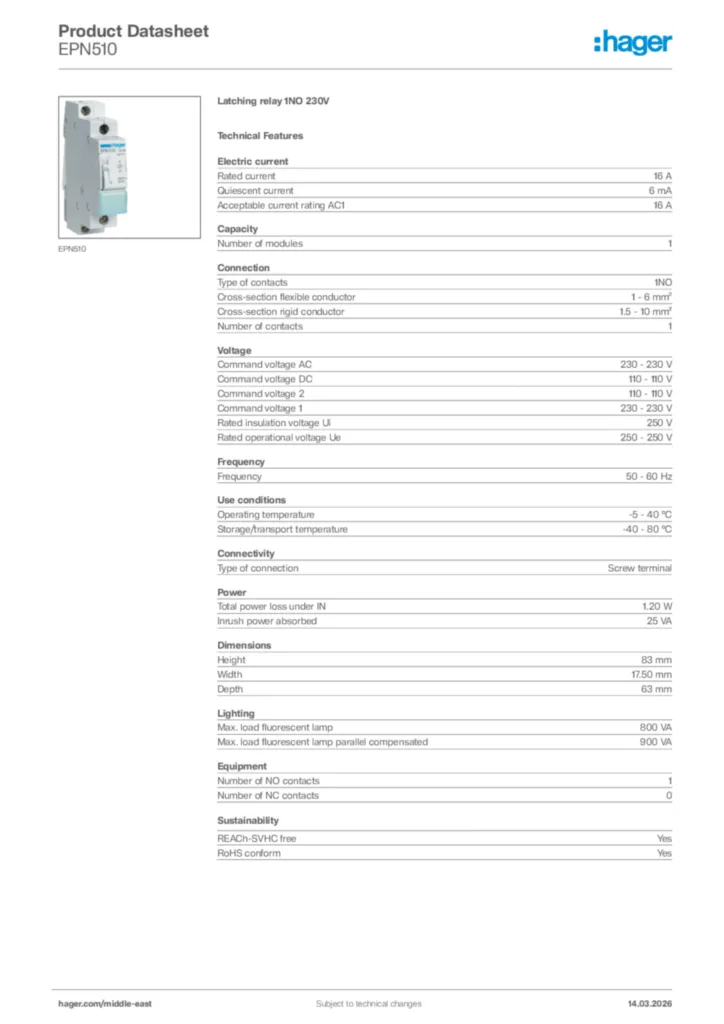

Hager Product data sheet EPN510
Latching relay 1NO 230V
PDF -
Product data sheet
UK_MD_TDS_LatchingRelays.pdf
Technical data sheet including characteristics for latching relays.
PDF121,37 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2020-09-10
PDF262,84 kB
