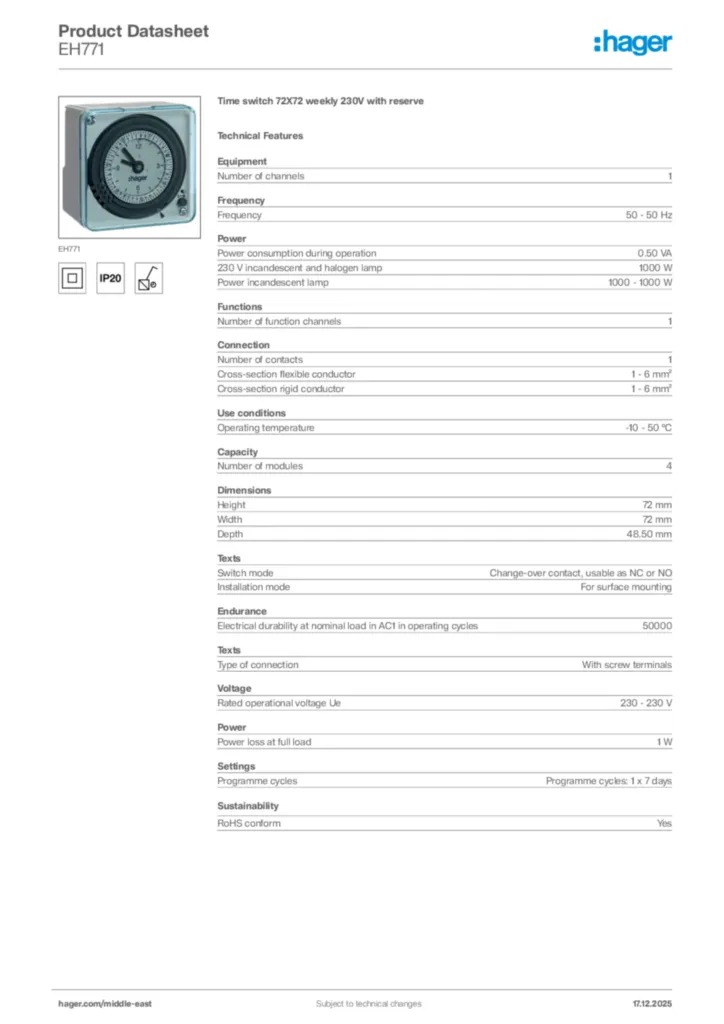

Time switch 72X72 weekly 230V with reserve EH771
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Equipment
-
Number of channels1
Frequency
-
Frequency50 - 50 Hz
Power
-
Power consumption during operation0.50 VA
-
230 V incandescent and halogen lamp1,000 W
-
Power incandescent lamp1,000 - 1,000 W
-
Power loss at full load1 W
Functions
-
Number of function channels1
Connection
-
Number of contacts1
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 6 mm²
Use conditions
-
Operating temperature-10 - 50 °C
Capacity
-
Number of modules4
Dimensions
-
Height72 mm
-
Width72 mm
-
Depth48.50 mm
Texts
-
Switch modeChange-over contact, usable as NC or NO
-
Installation modeFor surface mounting
-
Type of connectionWith screw terminals
Endurance
-
Electrical durability at nominal load in AC1 in operating cycles50,000
Voltage
-
Rated operational voltage Ue230 - 230 V
Settings
-
Programme cyclesProgramme cycles: 1 x 7 days
