EAN-Nr.

3250612282104

Packaging

1 piece

2 modules daily time switch without reserve with clock hands EH210

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

EHN110

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Number of channels

1

Frequency

50 - 60 Hz

Power consumption during operation

0.50 VA
230 V incandescent and halogen lamp

1,000 W
Power incandescent lamp

1,000 - 1,000 W
Power loss at full load

1 W

Number of function channels

1

Number of contacts

1
Cross-section flexible conductor

1 - 4 mm²
Cross-section rigid conductor

1 - 4 mm²

Operating temperature

-10 - 55 °C

Number of modules

2

Height

90 mm
Width

36 mm
Depth

58 mm

Switch mode

Change-over contact, usable as NC or NO
Installation mode

For mounting on DIN rail
Type of connection

With screw terminals

Max. power (cos phi 0,6)

3 A

Electrical durability at nominal load in AC1 in operating cycles

50,000

Programme cycles

Programme cycle: 24 hours

Downloads

Product Image EH210

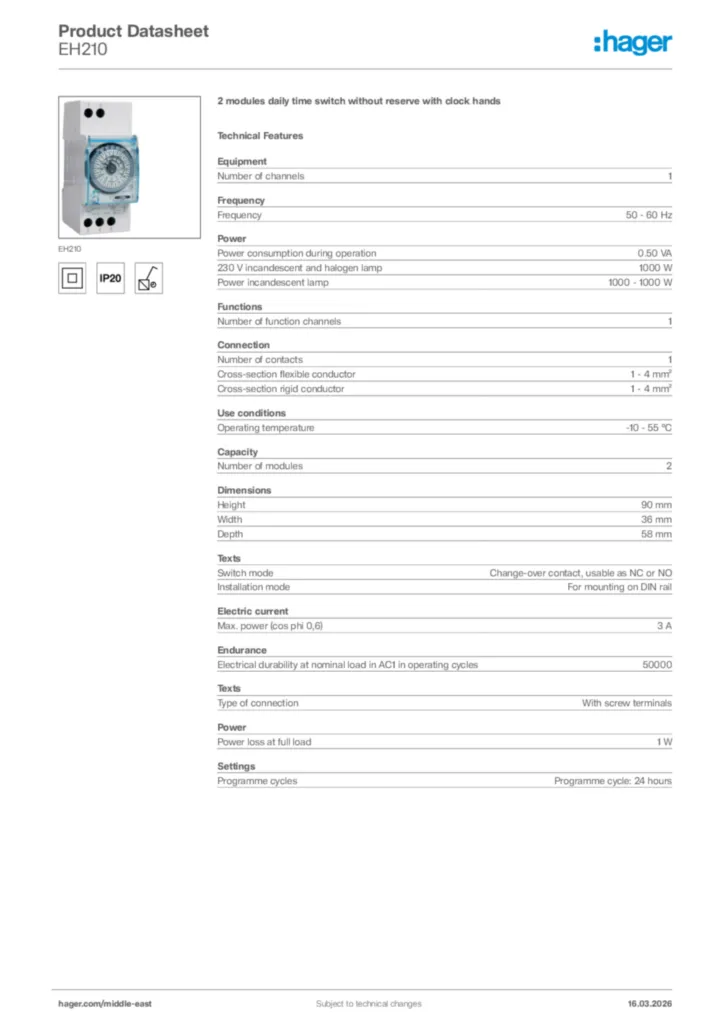

Product datasheet

Hager Product data sheet EH210

2 modules daily time switch without reserve with clock hands

PDF

More documentation
