Time switch daily cycle with reserve 3 modules EH111
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Technical characteristics
Equipment
-
Number of channels1
Frequency
-
Frequency50 - 50 Hz
Power
-
Power consumption during operation0.50 VA
-
230 V incandescent and halogen lamp900 W
-
Power incandescent lamp900 - 900 W
-
Power loss at full load1 W
Functions
-
Number of function channels1
Connection
-
Number of contacts1
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 4 mm²
Use conditions
-
Operating temperature-10 - 45 °C
Capacity
-
Number of modules3
Dimensions
-
Height90 mm
-
Width54 mm
-
Depth60 mm
Texts
-
Switch modeChange-over contact, usable as NC or NO
-
Installation modeFor mounting on DIN rail
-
Type of connectionWith screw terminals
Electric current
-
Max. power (cos phi 0,6)3 A
Endurance
-
Electrical durability at nominal load in AC1 in operating cycles50,000
Voltage
-
Rated operational voltage Ue230 - 230 V
Settings
-
Programme cyclesProgramme cycle: 24 hours
Lighting
-
LED lamp power450 W
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

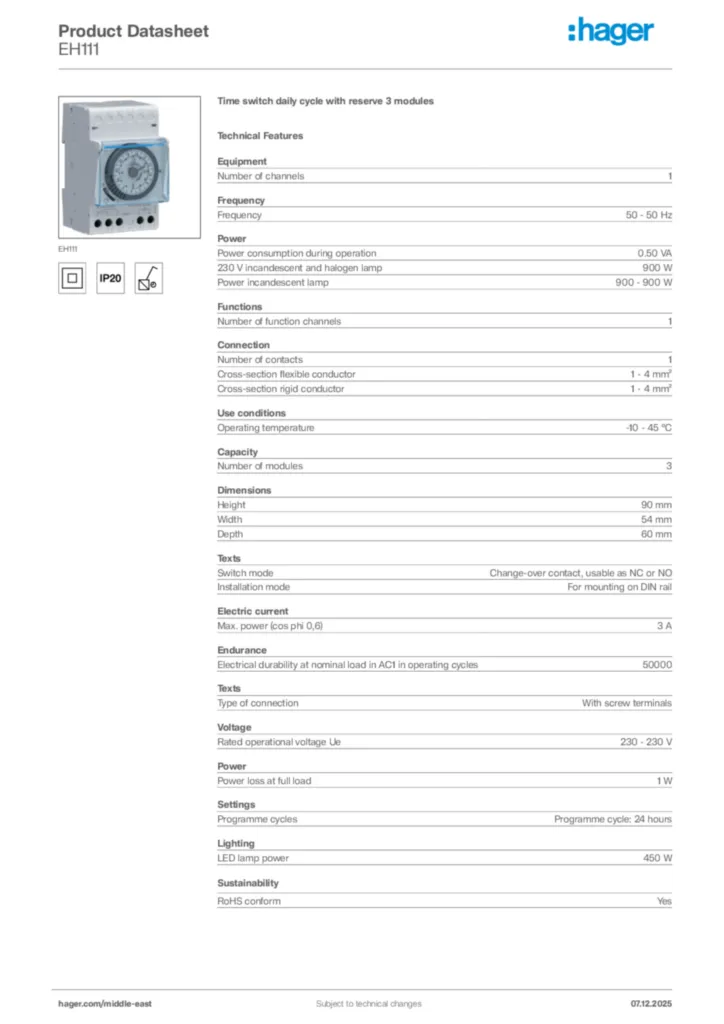

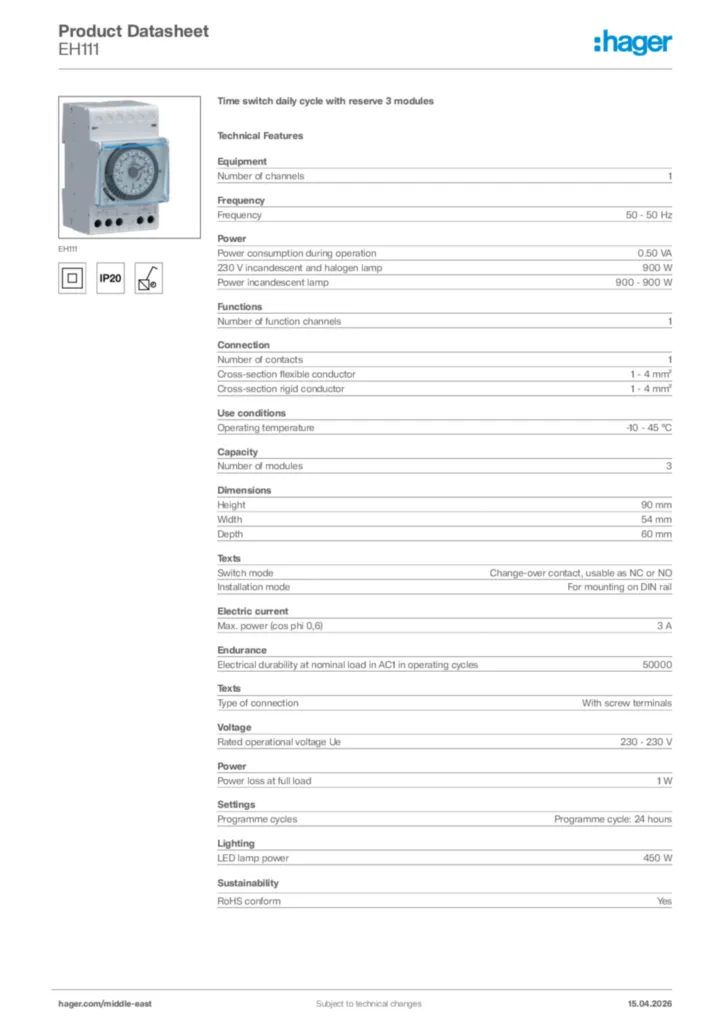

Product datasheet
Hager Product data sheet EH111
Time switch daily cycle with reserve 3 modules
PDF -
Installation manual
LEAFLET ID1_EH110_6LE002474B
Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, pl-PL, pt-PT, sv-SE 2019-05-31
PDF1,58 MB -
Product data sheet
UK_MD_TDS_TimeSwitches.pdf
Technical data sheet including characteristics for time switches.
PDF74,88 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-24
PDF124,06 kB
