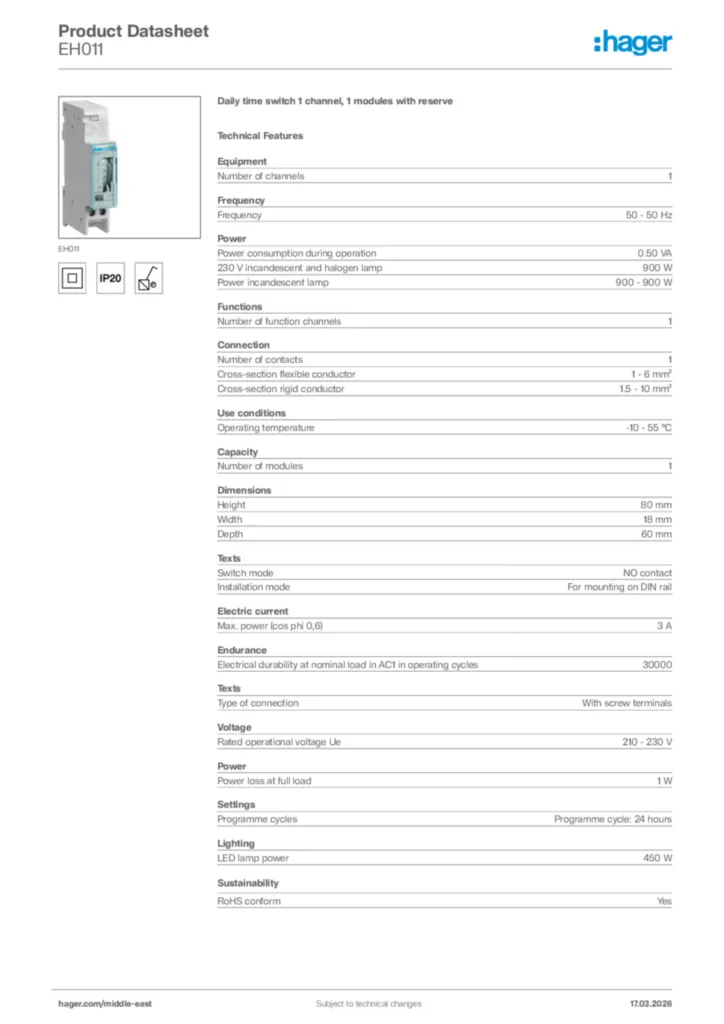

Daily time switch 1 channel, 1 modules with reserve EH011

EAN-Nr.
3250612280117
Packaging
1 piece
Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

EHN011

Technical characteristics

Equipment
  • Number of channels
    1
Frequency
  • Frequency
    50 - 50 Hz
Power
  • Power consumption during operation
    0.50 VA
  • 230 V incandescent and halogen lamp
    900 W
  • Power incandescent lamp
    900 - 900 W
  • Power loss at full load
    1 W
Functions
  • Number of function channels
    1
Connection
  • Number of contacts
    1
  • Cross-section flexible conductor
    1 - 6 mm²
  • Cross-section rigid conductor
    1.5 - 10 mm²
Use conditions
  • Operating temperature
    -10 - 55 °C
Capacity
  • Number of modules
    1
Dimensions
  • Height
    80 mm
  • Width
    18 mm
  • Depth
    60 mm
Texts
  • Switch mode
    NO contact
  • Installation mode
    For mounting on DIN rail
  • Type of connection
    With screw terminals
Electric current
  • Max. power (cos phi 0,6)
    3 A
Endurance
  • Electrical durability at nominal load in AC1 in operating cycles
    30,000
Voltage
  • Rated operational voltage Ue
    210 - 230 V
Settings
  • Programme cycles
    Programme cycle: 24 hours
Lighting
  • LED lamp power
    450 W

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
