Weekly time switch 4 channels, digital, 4 modules EG403E
EAN-Nr.
3250612279845
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp1,500 W
Functions
-
Power reserve in years5 y
-
With network synchronisationNo
-
With quartz synchronisationYes
-
Number of function channels4
Equipment
-
Accuracy per day0.20 s
-
With impulse programmeYes
-
Number of channels4
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Settings
-
Daily programmeNo
-
Weekly programmeYes
-
Annual programmeNo
Use conditions
-
Operating temperature-10 - 50 °C
Texts
-
Type of connectionWith quickconnect plug-in terminals
-
FunctionWith pulse function, Keylock via PIN, Presence simulation, With operating hours meter
Dimensions
-
Height90 mm
-
Width71 mm
-
Depth69 mm
Capacity
-
Number of modules4
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Downloads
-
Product datasheet

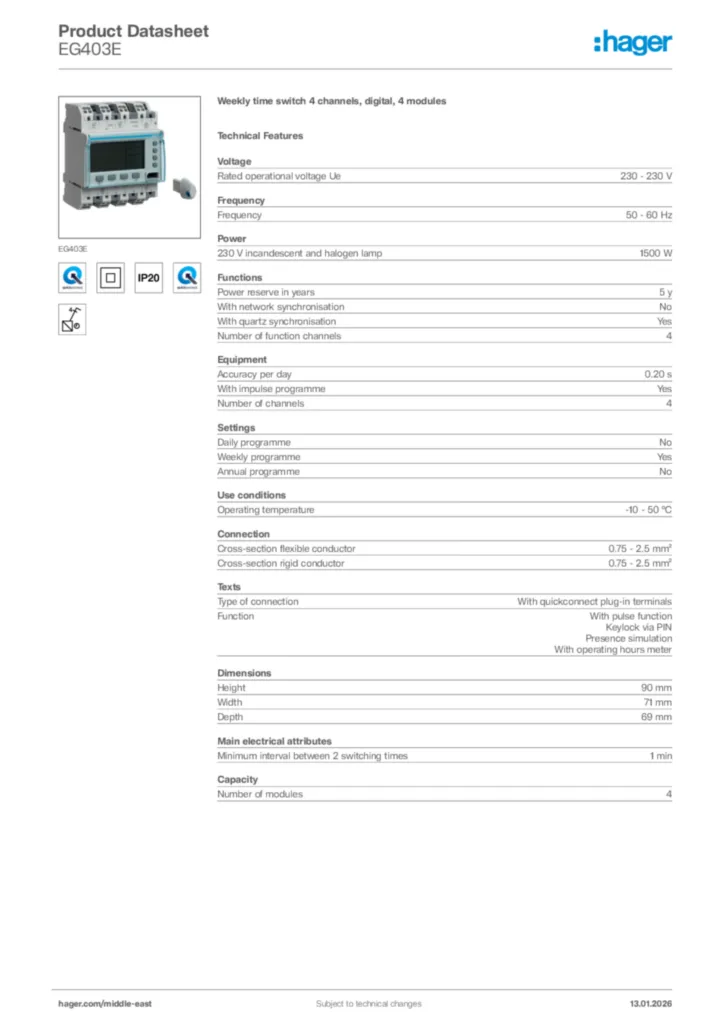

Hager Product data sheet EG403E
Weekly time switch 4 channels, digital, 4 modules
PDF -
Installation manual
Programmateur 4 voies cycle hebdomadaire + cle de programmation EG403E
Installation manual en-GB 2020-01-01
PDF1,30 MB -
Tool
Windows software for EG003 V 2.0.2
Tool International 2023-10-30
EXE40,25 MB
